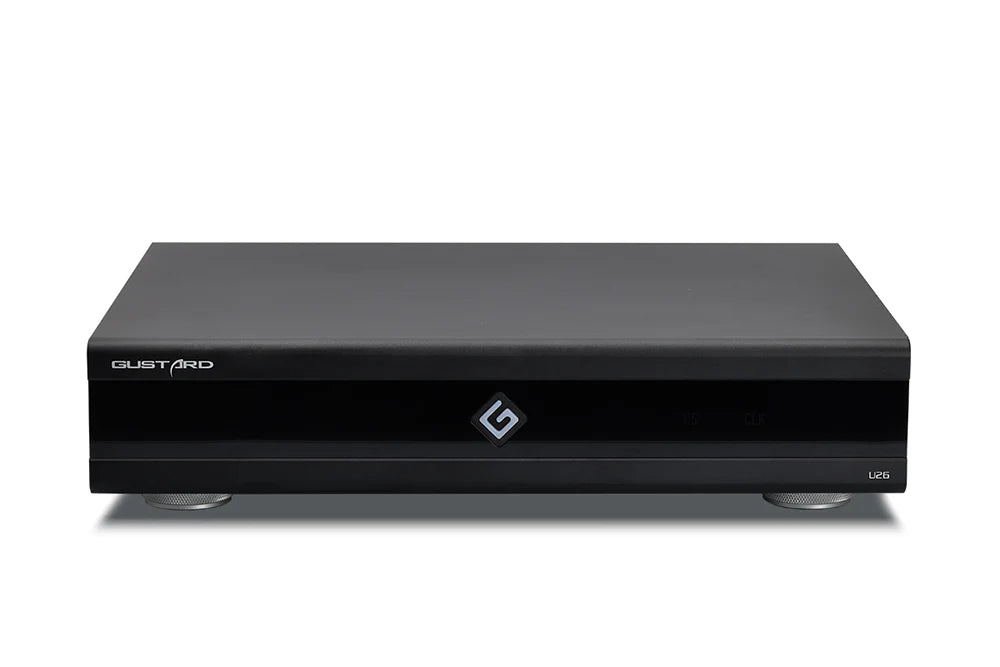

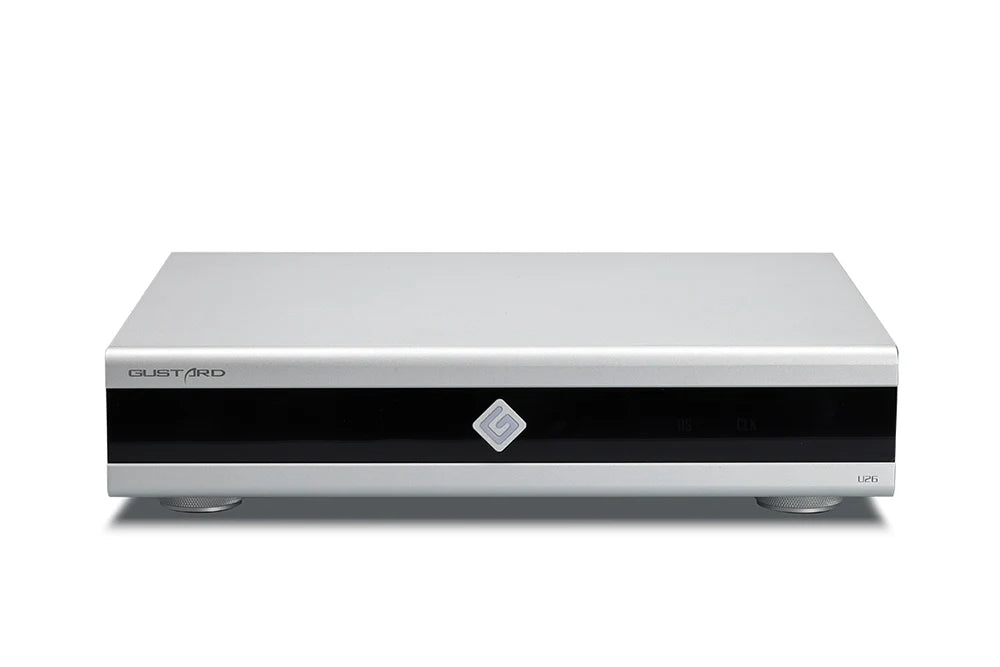

GUSTARD U26

Flagship High-Precision USB Digital Interface

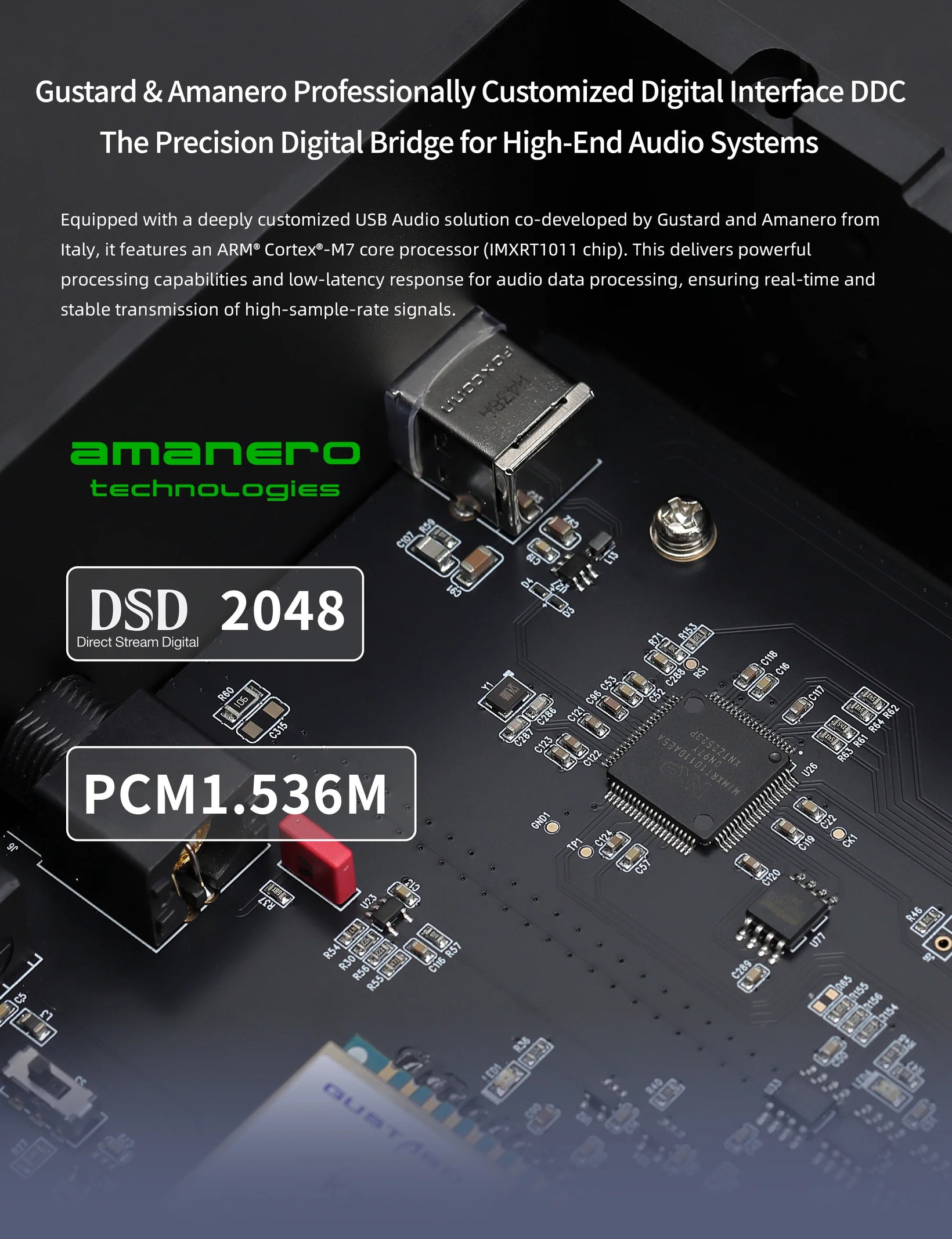

  • Customized ARM Cortex-M7 USB Digital Interface

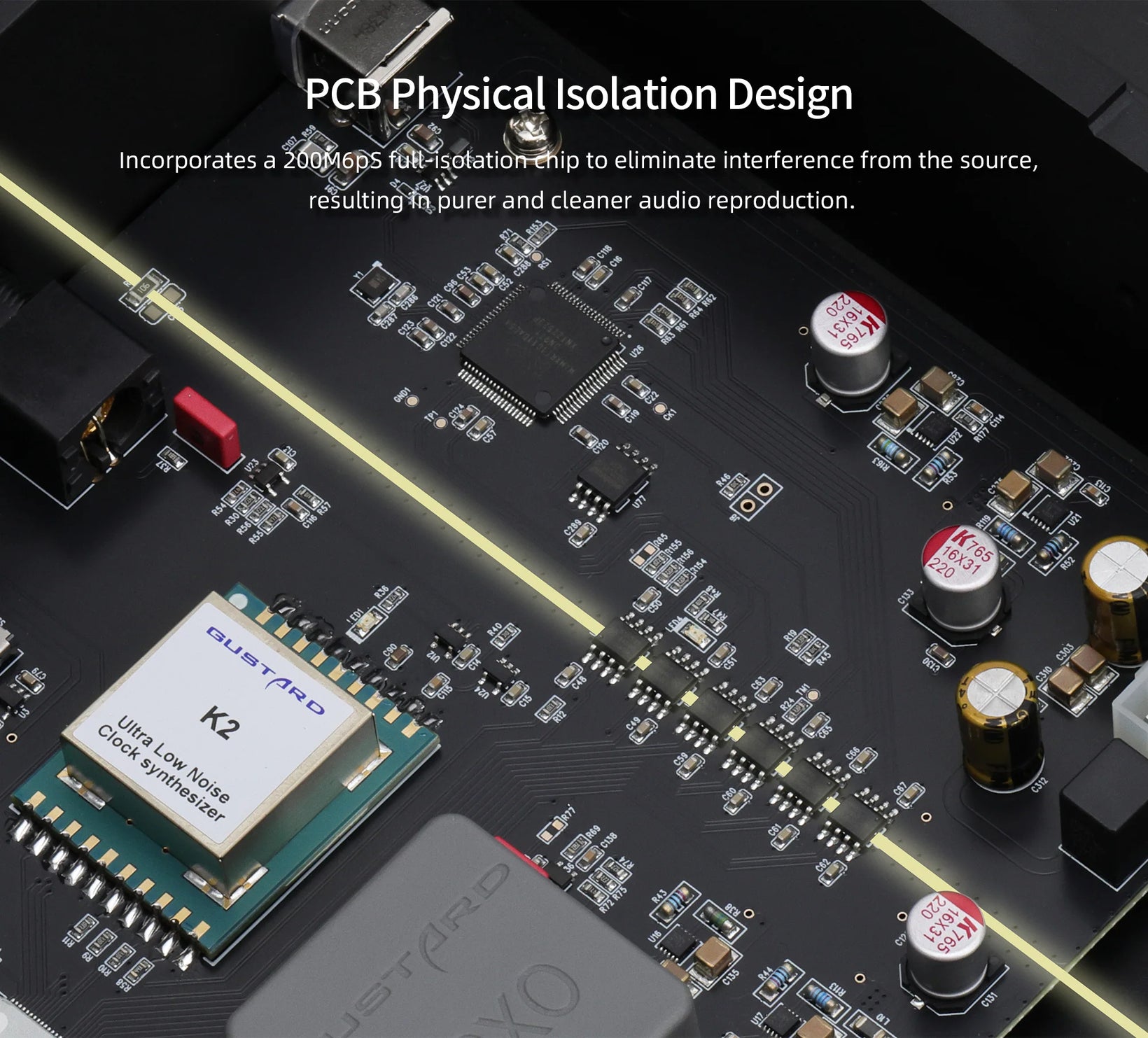

  • Galvanic isolation
  • Full PCM & DSD High-Resolution Audio Support, including DSD2048
  • Multi-Output Digital Connectivity (Coaxial, AES, Optical, I²S)

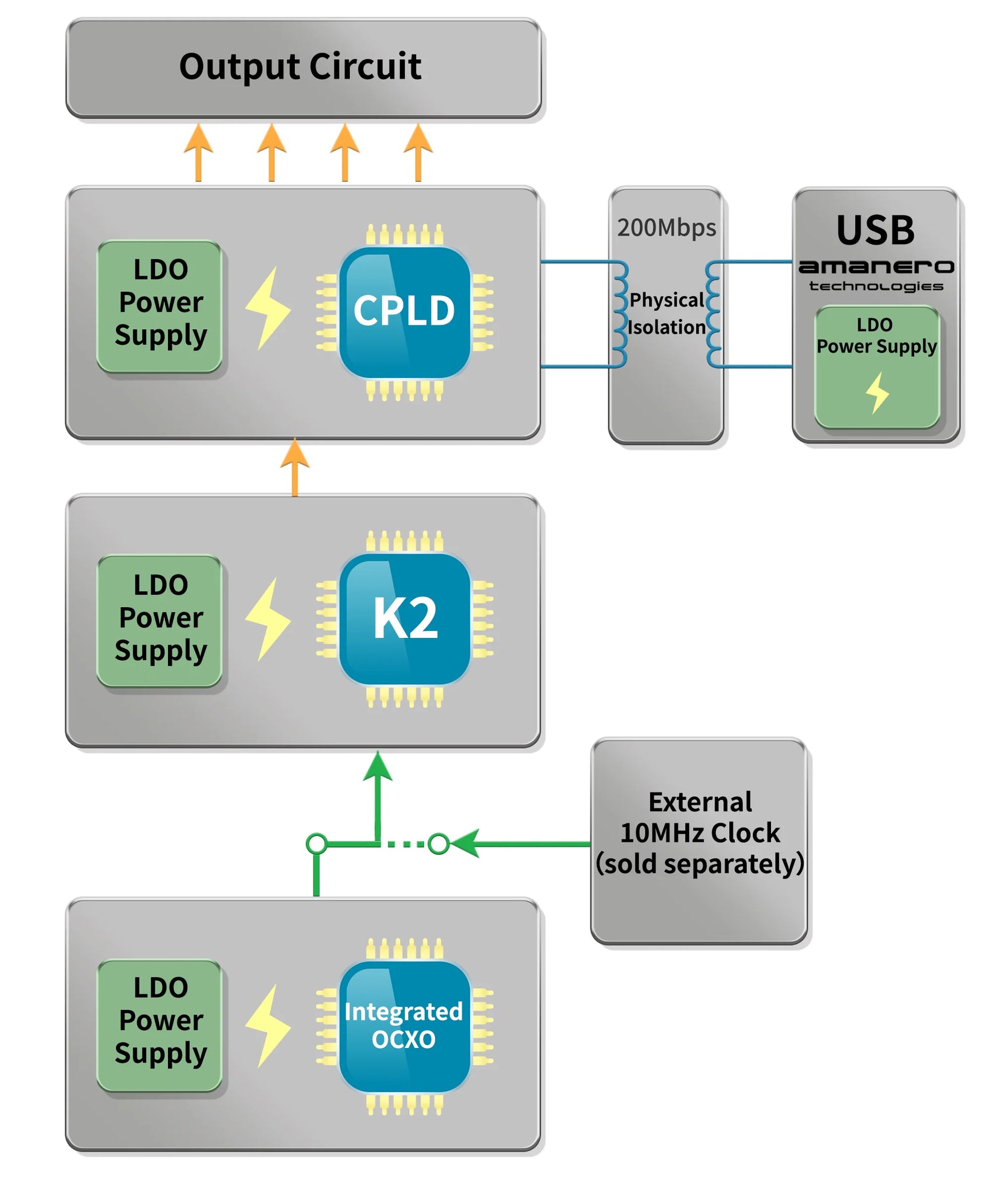

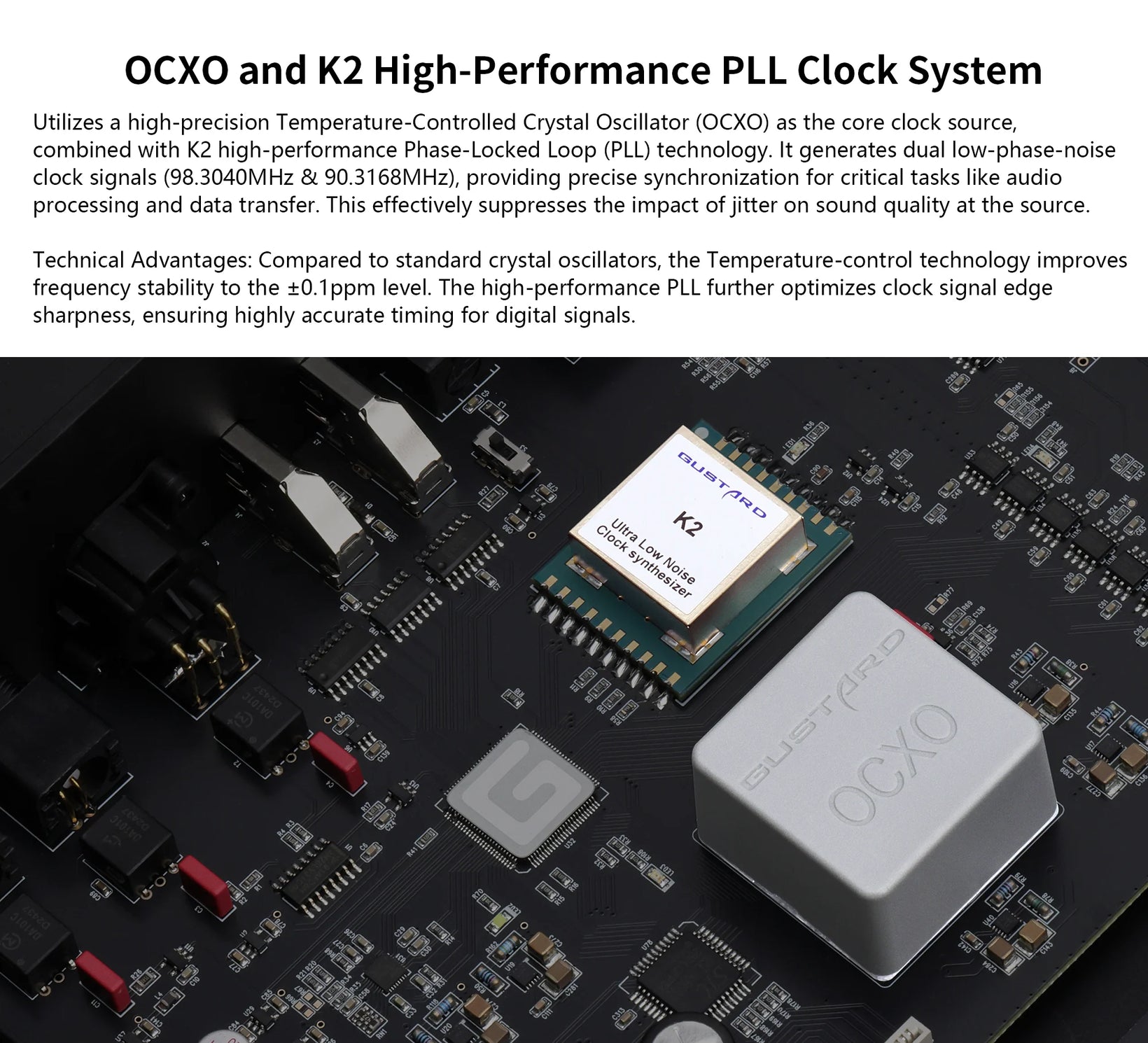

  • OCXO & K2 PLL Dual Low-Phase-Noise Clock System

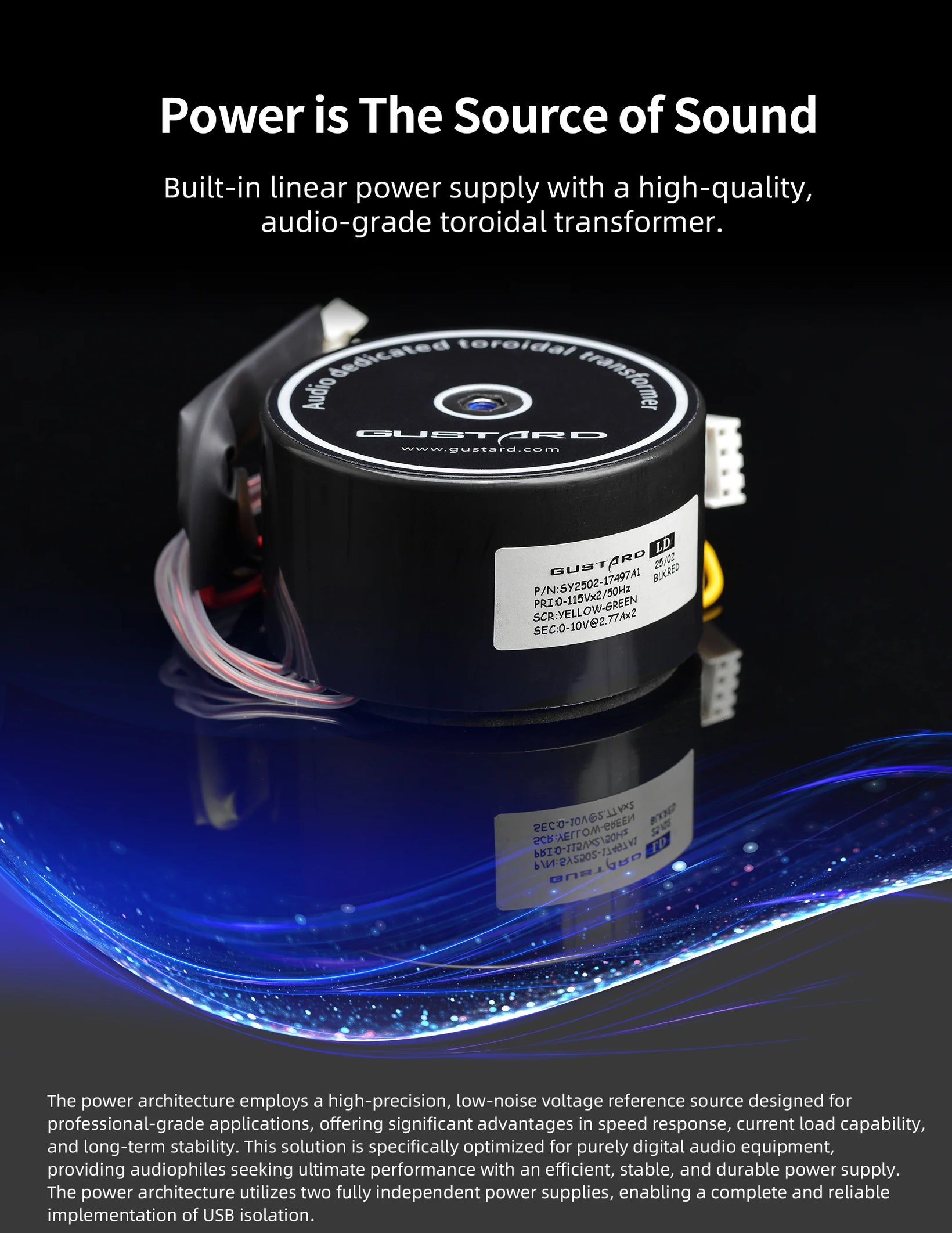

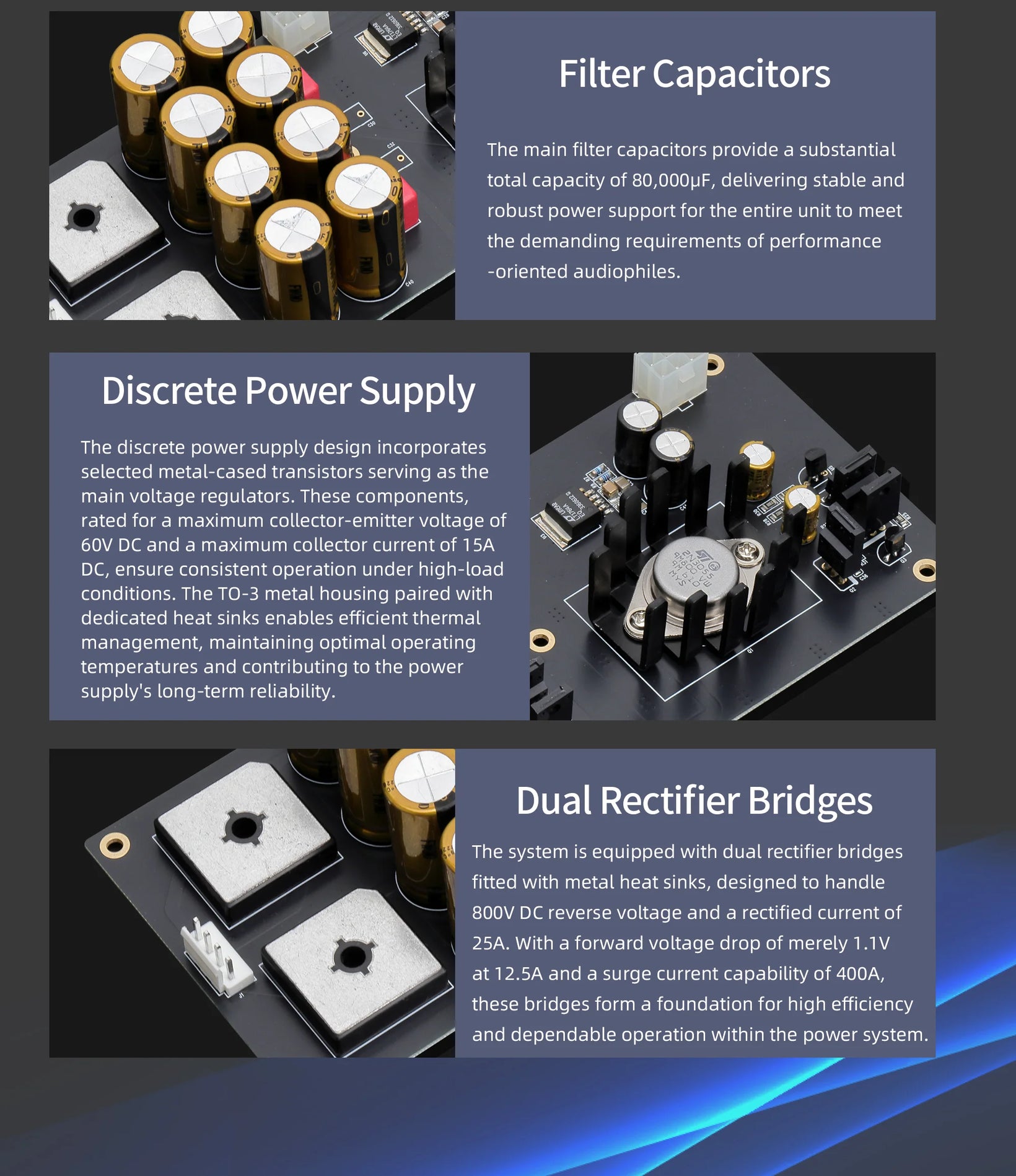

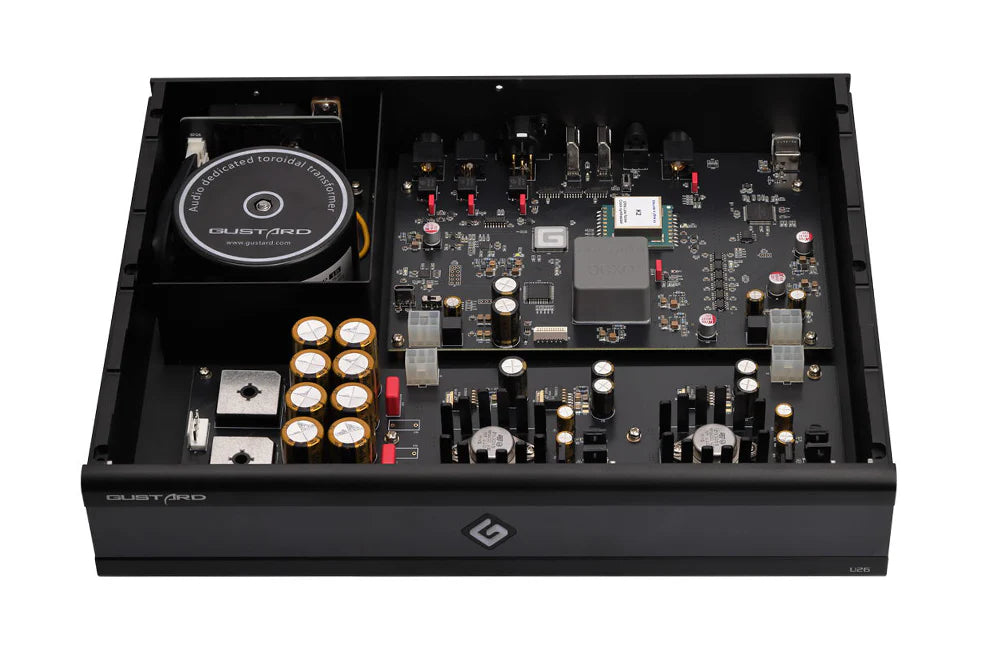

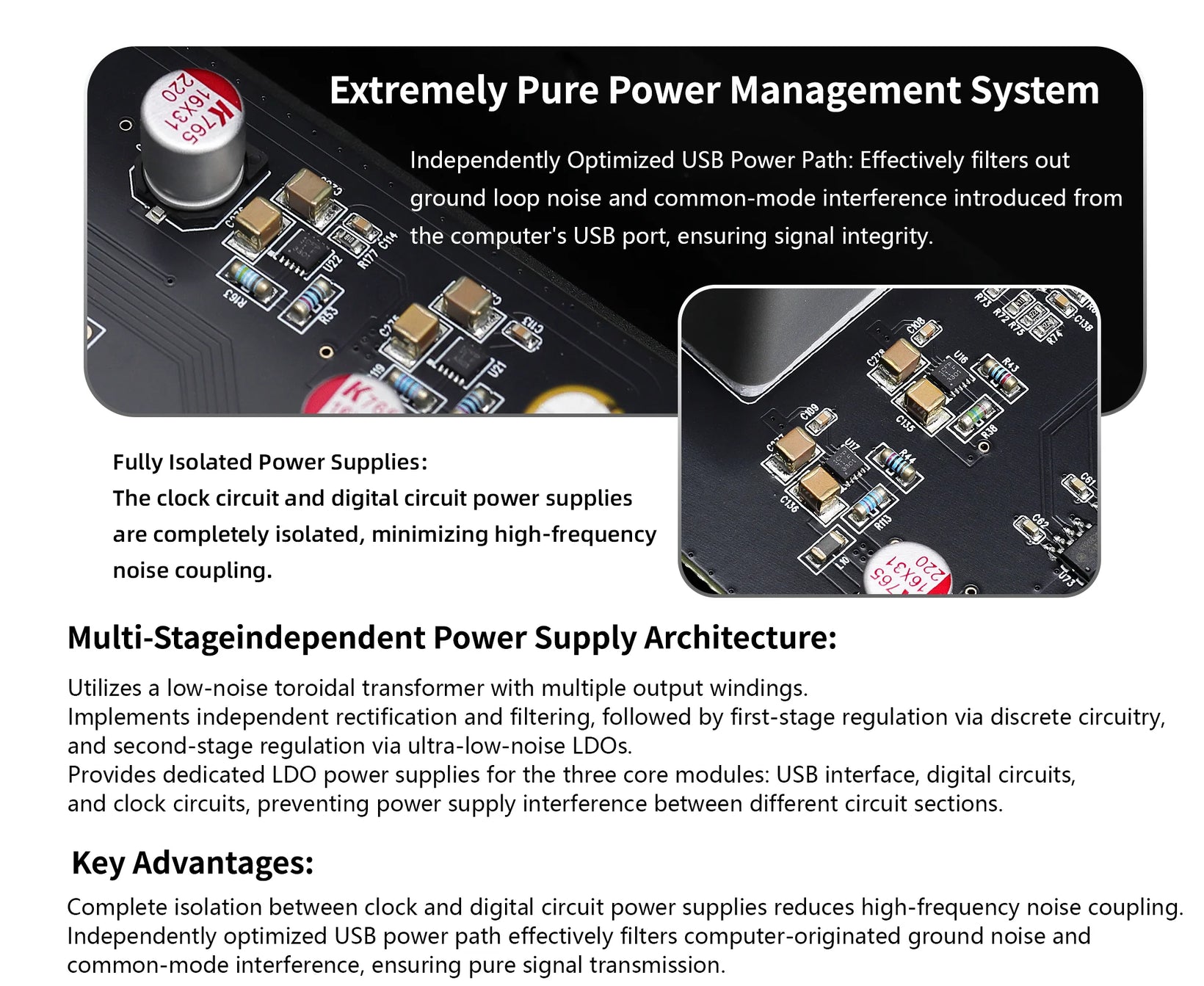

  • Fully Isolated Multi-Stage Power Supply Architecture

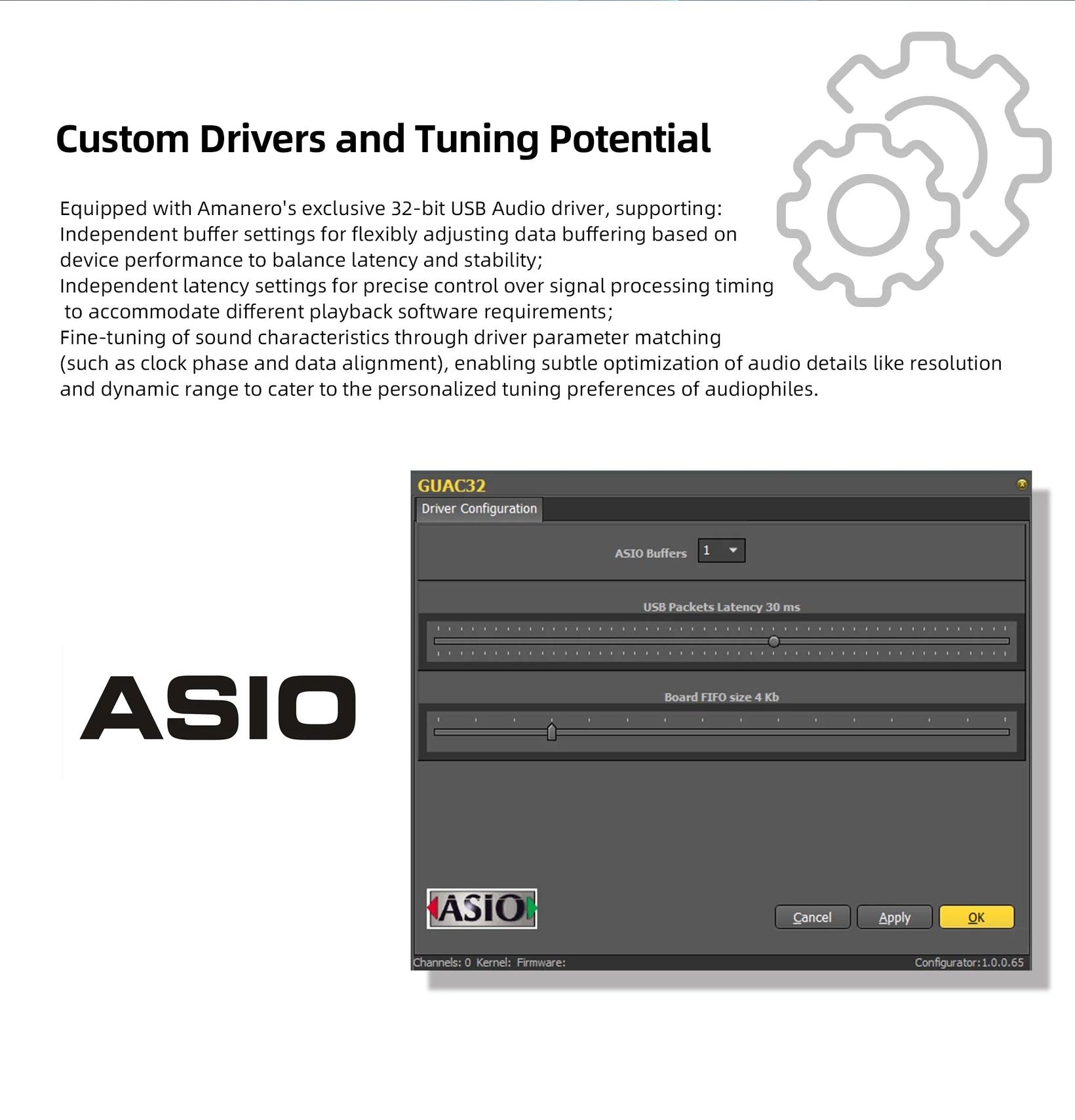

  • Amanero 32-Bit USB Audio Driver with Tuning Flexibility

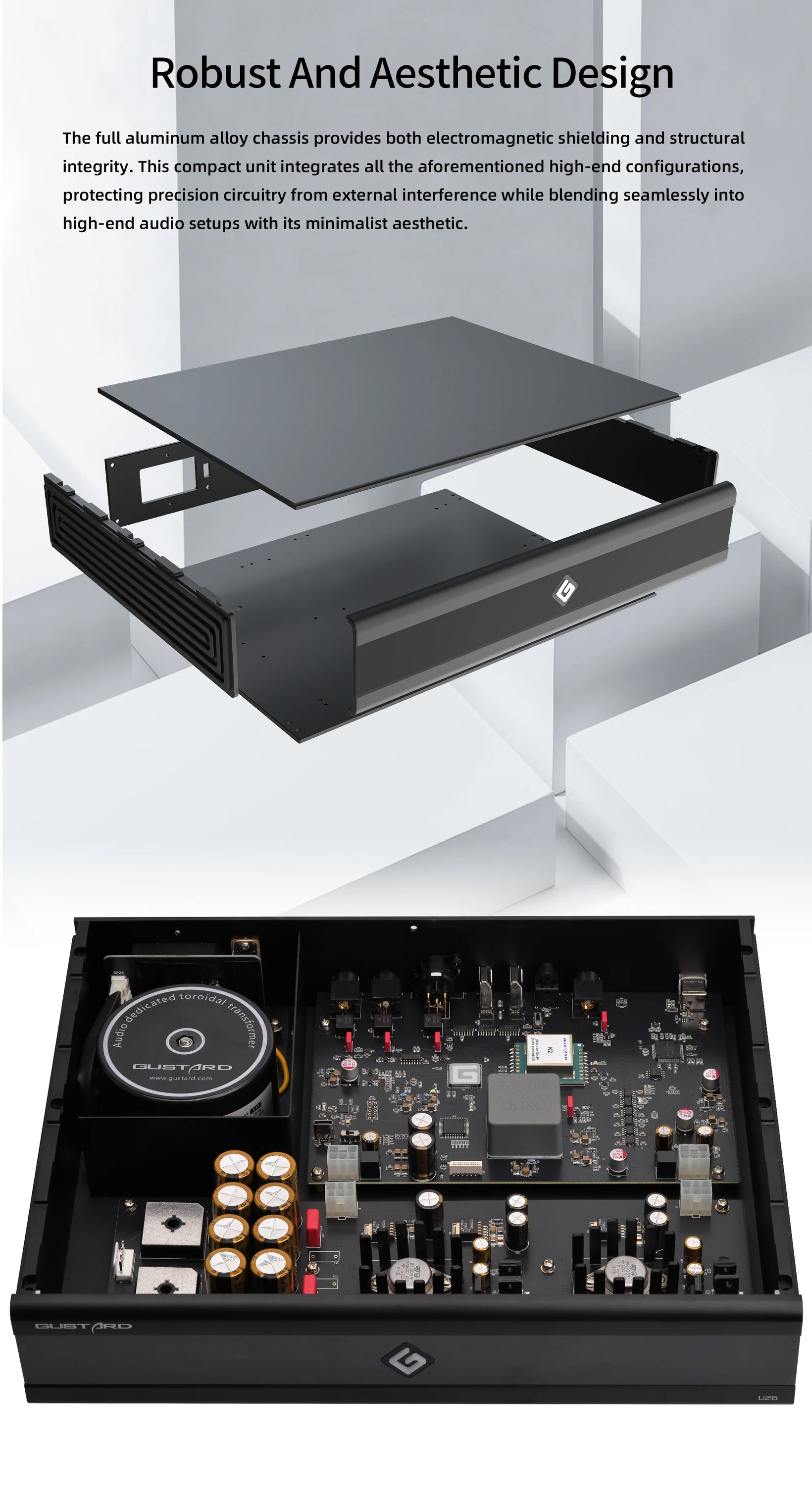

  • Aluminum Alloy Chassis for EMI Shielding & Durability
Silver
Black
Silver - open box
Regular price £849.00
Sale price £849.00 Regular price £899.00
Unit price
Save 5%
Our Delivered Duty Paid (DDP) service is now live for the following countries:
  • Belgium
  • Denmark
  • France
  • Germany
  • Netherlands
  • Norway
  • Portugal
  • Spain
  • Sweden
  • Switzerland

VAT & Duties Included for UK & Eligible EU Customers.

For all other international customers, VAT is removed from the displayed price. These customers will incur local import taxes and duty charges.

VAT and Import Taxes FAQ
  • Estimated Delivery:Mar 03 - Mar 07

GUSTARD U26

GUSTARD U26

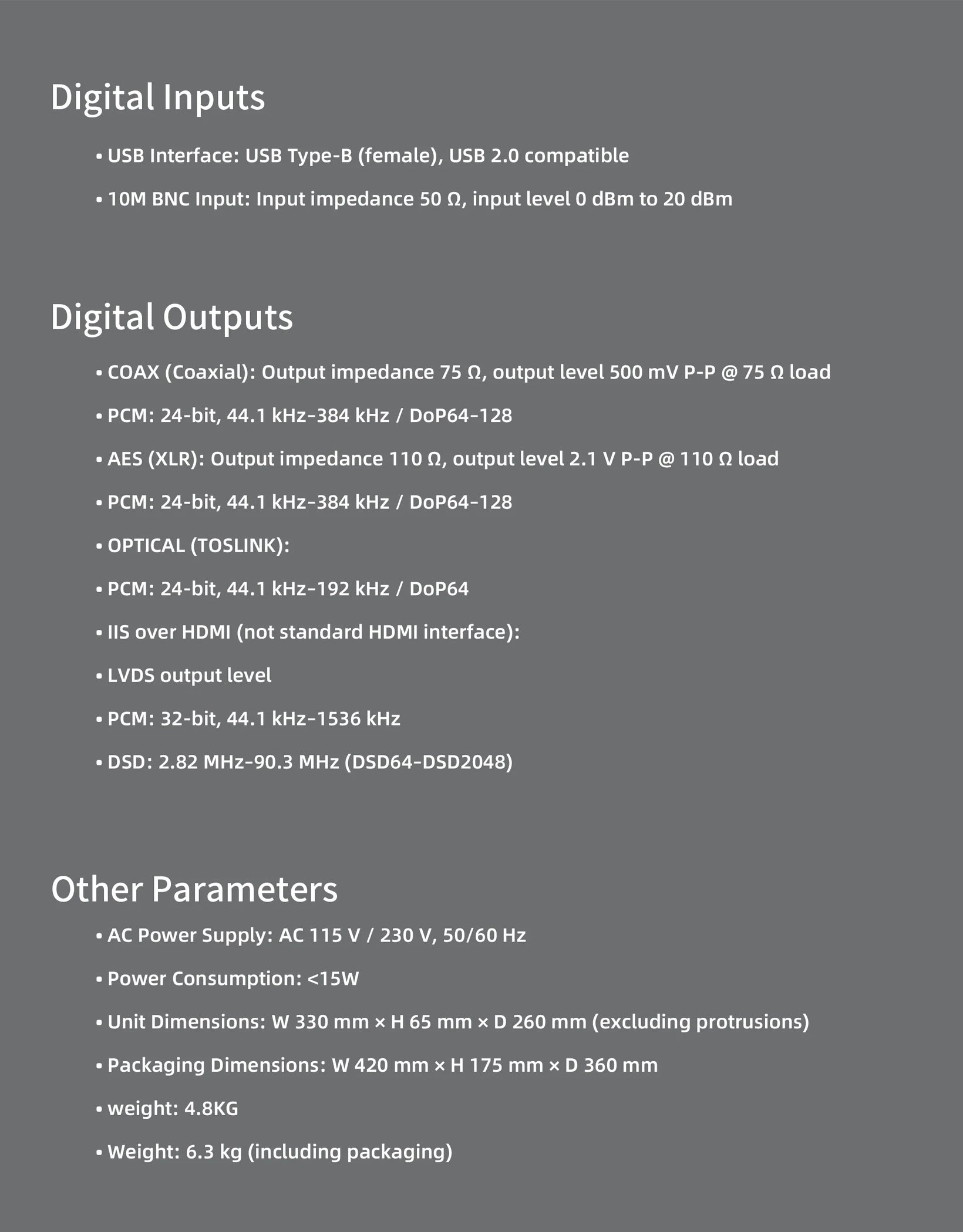

Technical Specifications

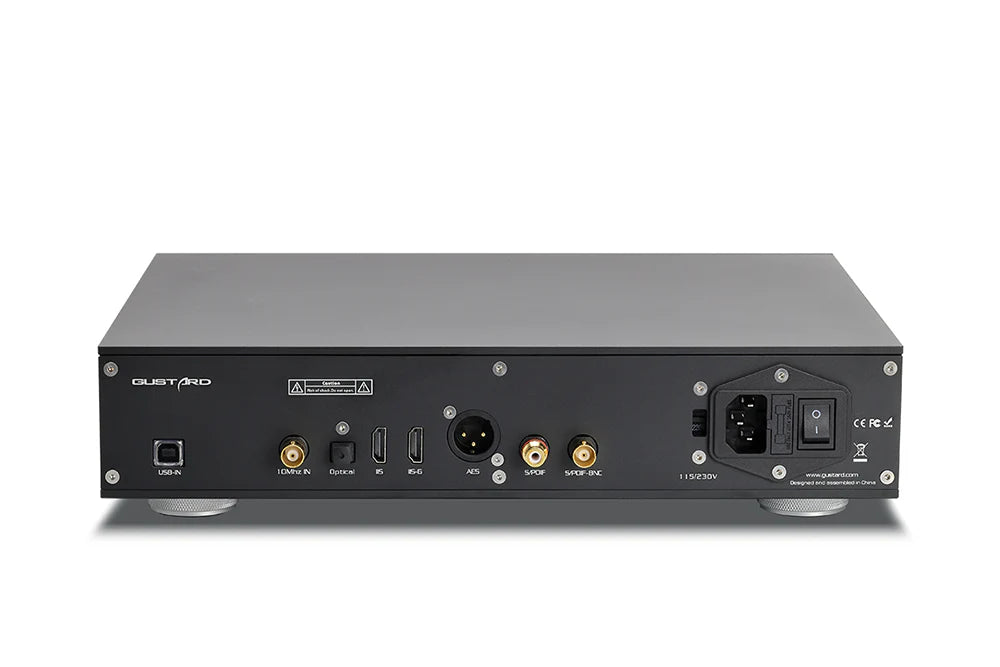

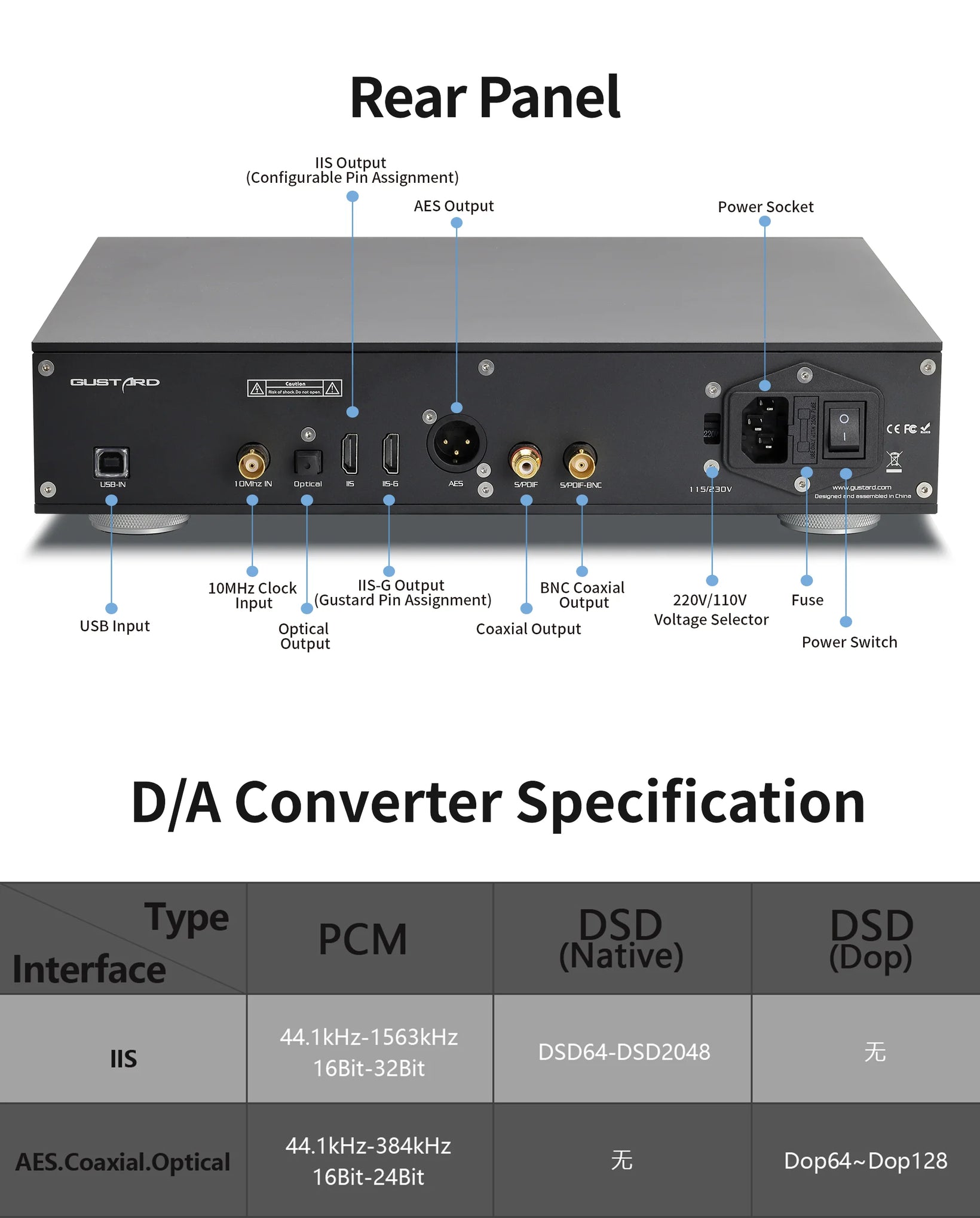

Digital Inputs
USB Interface: USB Type-B (female), USB 2.0 compatible
10M BNC Input: Input impedance 50 Ω, input level 0 dBm to 20 dBm
Digital Outputs
COAX (Coaxial): Output impedance 75 Ω, output level 500 mV P-P @ 75 Ω load
PCM: 24-bit, 44.1 kHz-384 kHz / DoP64-128
AES (XLR): Output impedance 110 Ω, output level 2.1 V P-P @ 110 Ω load
PCM: 24-bit, 44.1 kHz-384 kHz / DoP64-128
OPTICAL (TOSLINK): PCM: 24-bit, 44.1 kHz-192 kHz / DoP64

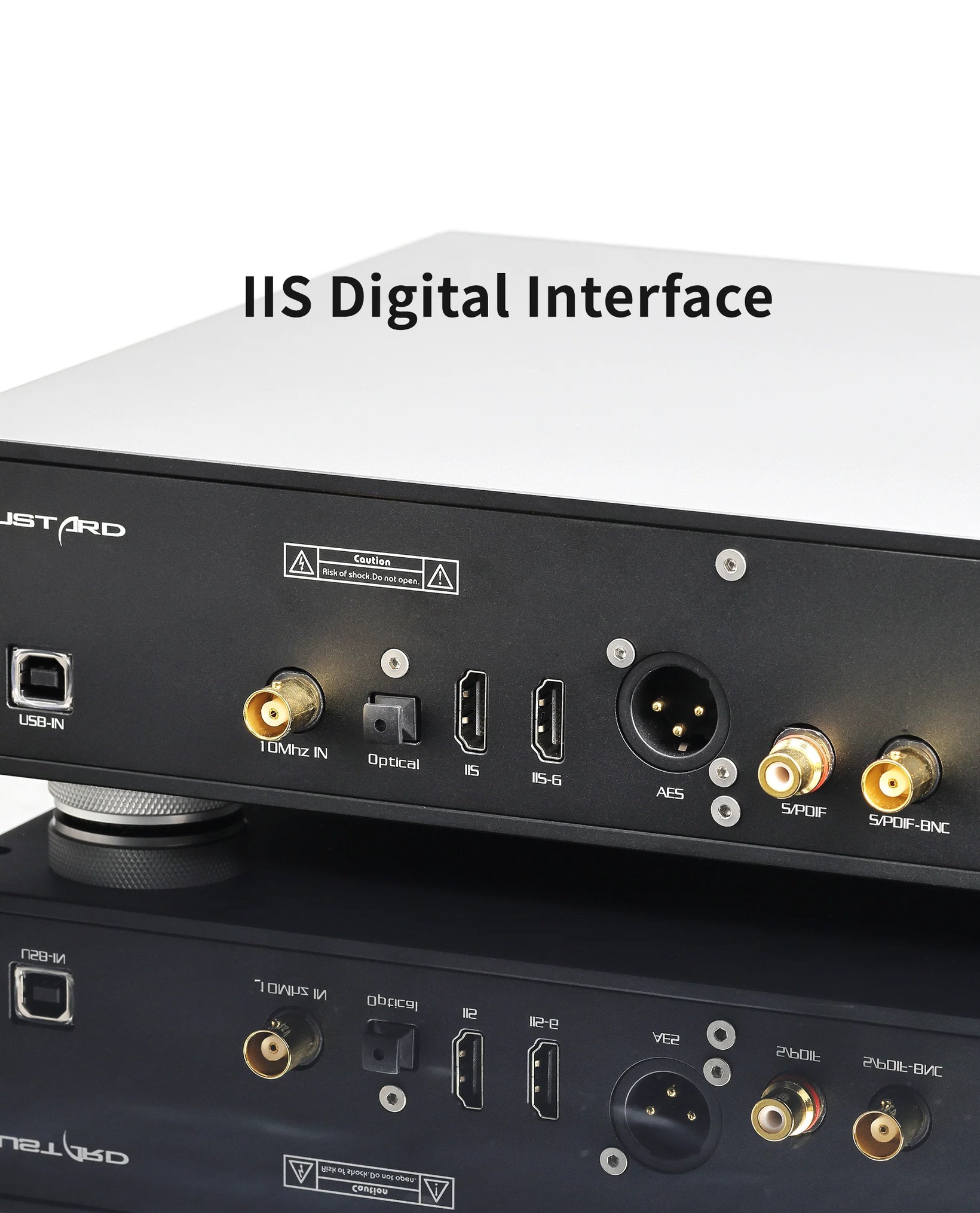

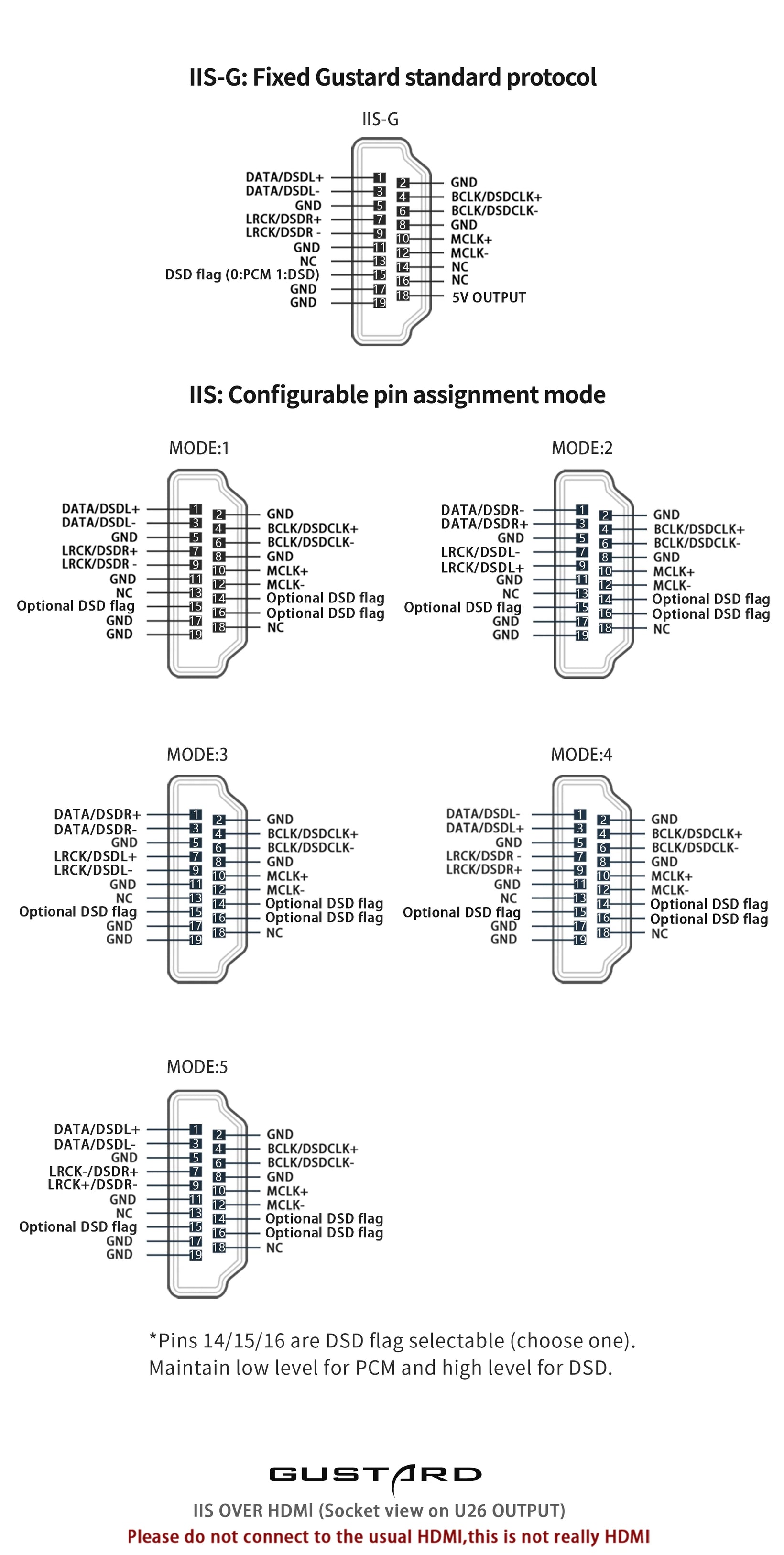

I2S over HDMI: LVDS output level
PCM: 32-bit, 44.1 kHz-1536 kHz
DSD: 2.82 MHz-90.3 MHz (DSD64-DSD2048)
AC Power Supply
AC 115V / 230V, 50/60 Hz
Power Consumption
<15W

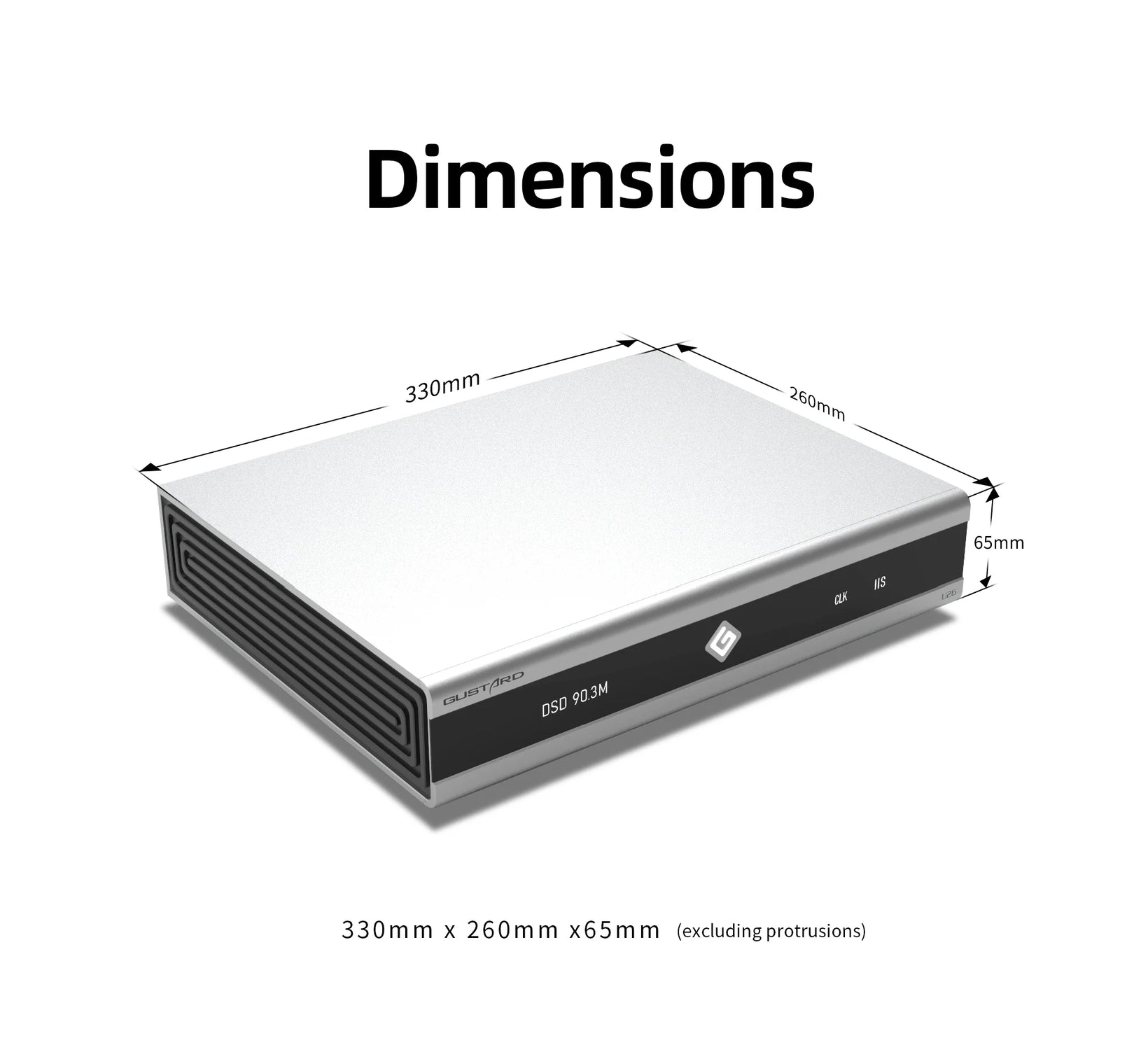

Unit Dimensions
W 330 mm x H 65 mm x D 260 mm (excluding protrusions)
Packaging Dimensions
W 420 mm x H 175 mm x D 360 mm
Unit Weight
4.8 kg
Packaged Weight
6.3 kg
