- MASS-Kobo Model 485

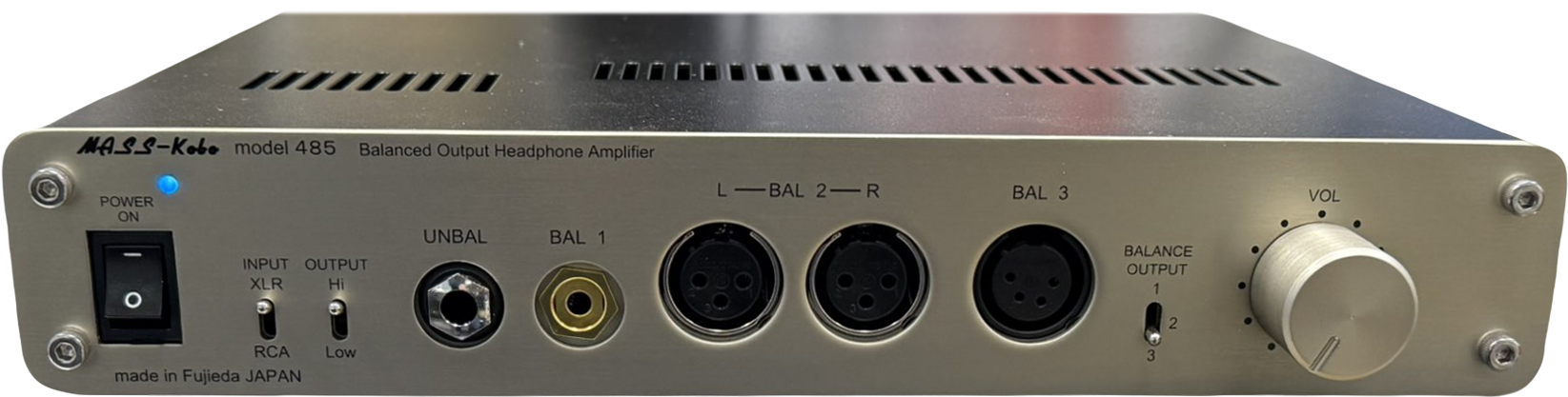

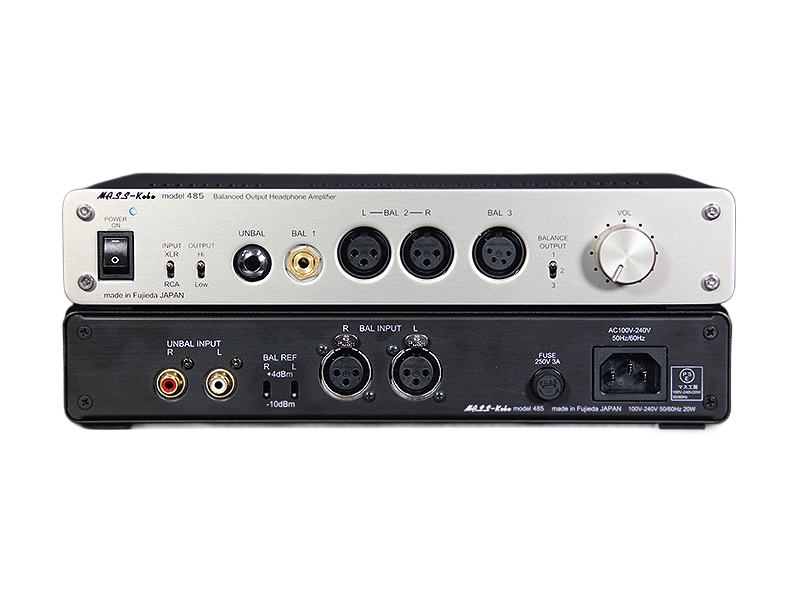

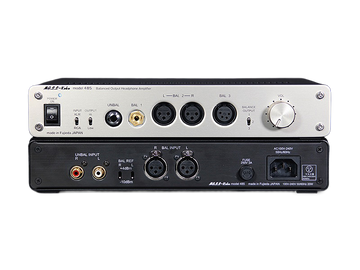

MASS-Kobo Model 485
Balanced Headphone Amplifier
- Successor to the Model 394 series, the new Model 485 features an updated design with a 4.4mm balanced output, now the industry standard.
- Balanced XLR inputs support +4dBm/-10dBm, while unbalanced RCA inputs follow the -10dBm standard.
- Includes an output switch for “Low” (normal-efficiency headphones) and “Hi” (low-efficiency headphones like planars).
- Equipped with custom conductive plastic faders by Tokyo KO-ON Denpa, typically used in high-end pro audio mixers.
- It features a high performing, 4 channel TDK potentiometer.
VAT Included for UK Customers.
For international customers, VAT is already removed from the displayed price. International Customers will incur local import taxes and duty charges.
VAT and Import Taxes FAQ
MASS-Kobo Model 485

Made in JAPAN - Built to Order
Successor to the popular Model 394 series; which was discontinued due to the discontinuation of some parts by their manufacturers, the Model 485 will see its design updated to include a 4.4mm balanced output, which has become the standard in recent years.

Technical Details
General
-
Balanced input/output stereo headphone amplifier
Inputs & Outputs
-
XLR3-31 equivalent x 2 (electronically balanced), RCA x 2 (unbalanced)
-
4.4mm Pentaconn, XLR4-31 (balanced stereo), XLR3-31 (L/R balanced)
Input Specifications
-
3.7kΩ (XLR), 12kΩ (RCA)
-
+4dBm / -10dBm (XLR), -10dBm (RCA)
-
+25dBm (XLR), +10dBm (RCA)
Output Specifications
-
Unbalanced: Hi 12V / Low 9V
Balanced: Hi 24V / Low 18V
(32Ω load, 1kHz, THD+N 0.05%) -
Unbalanced: Hi 4.2V / Low 3V
Balanced: Hi 8.5V / Low 6V
(32Ω load, 1kHz, THD+N 0.05%) -
Balanced: 2.2W+2.2W
Unbalanced: 600mW+600mW
(32Ω load, 1kHz, THD+N 0.05%)
Power & Physical
-
AC 100V–240V, 50Hz/60Hz
-
0.5A (at AC100V)
-
Without feet: 285 x 230 x 50mm
With feet: 285 x 258 x 52mm -
2.9kg (main unit only)
