  • Gustard R30 - Silver
  • Gustard R30 - Black

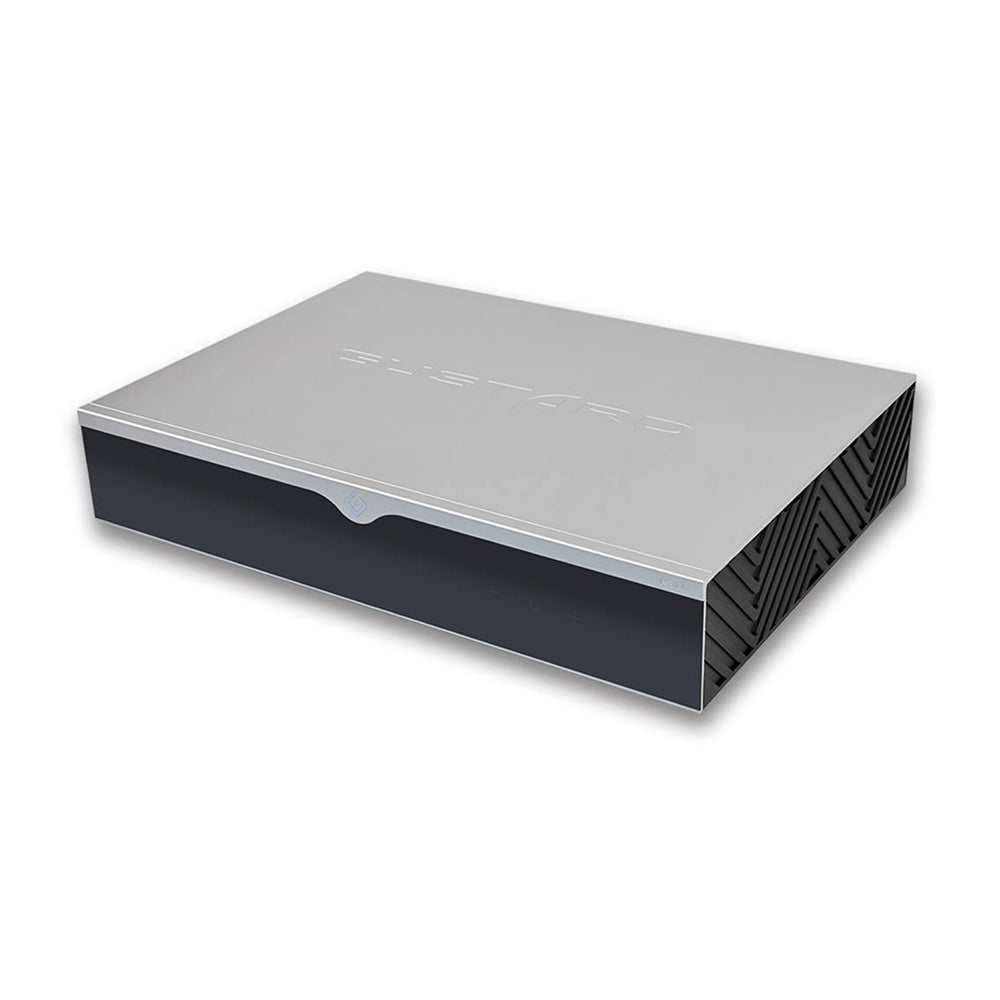

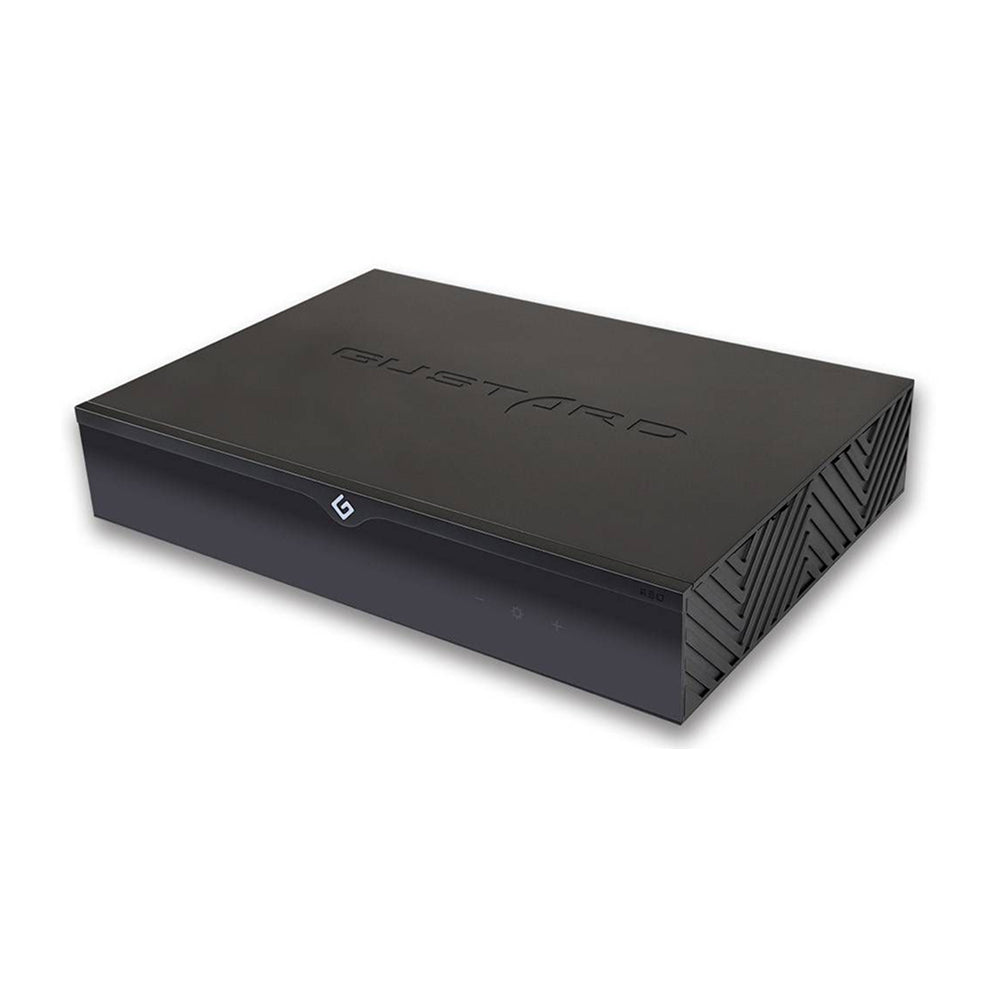

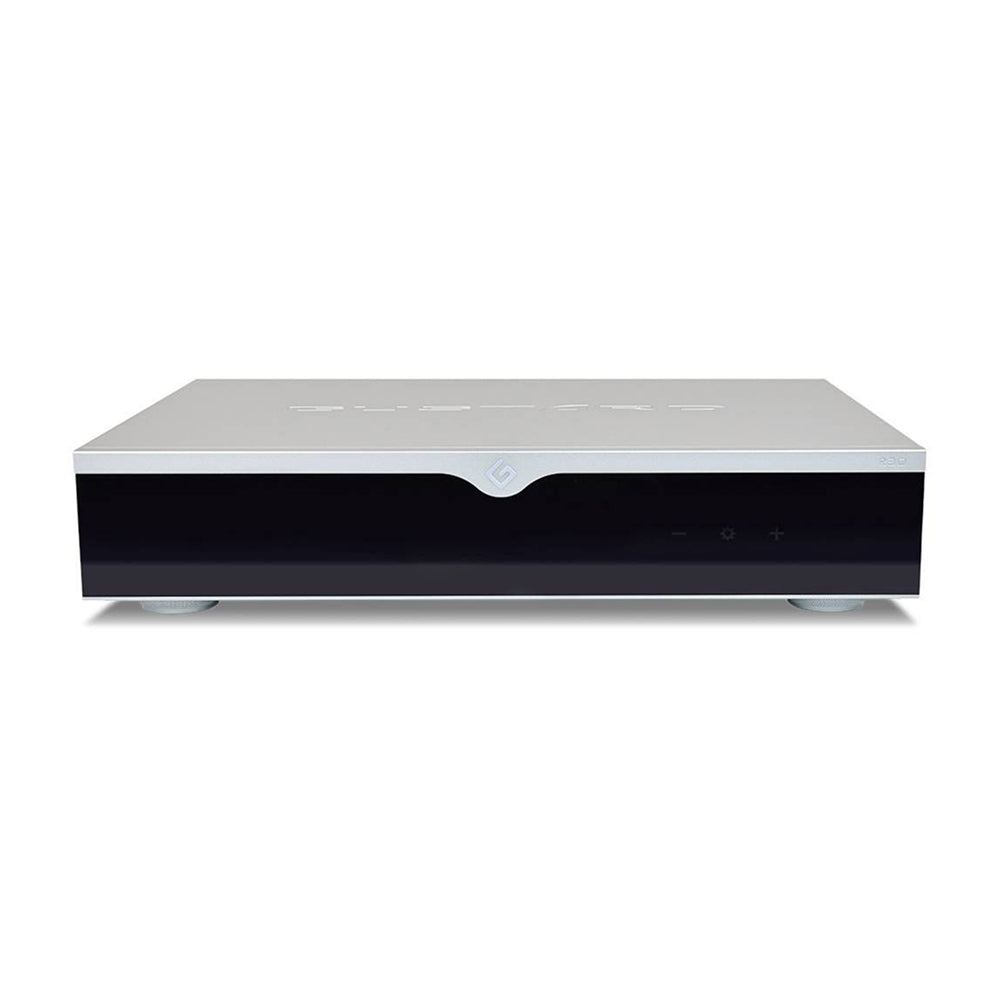

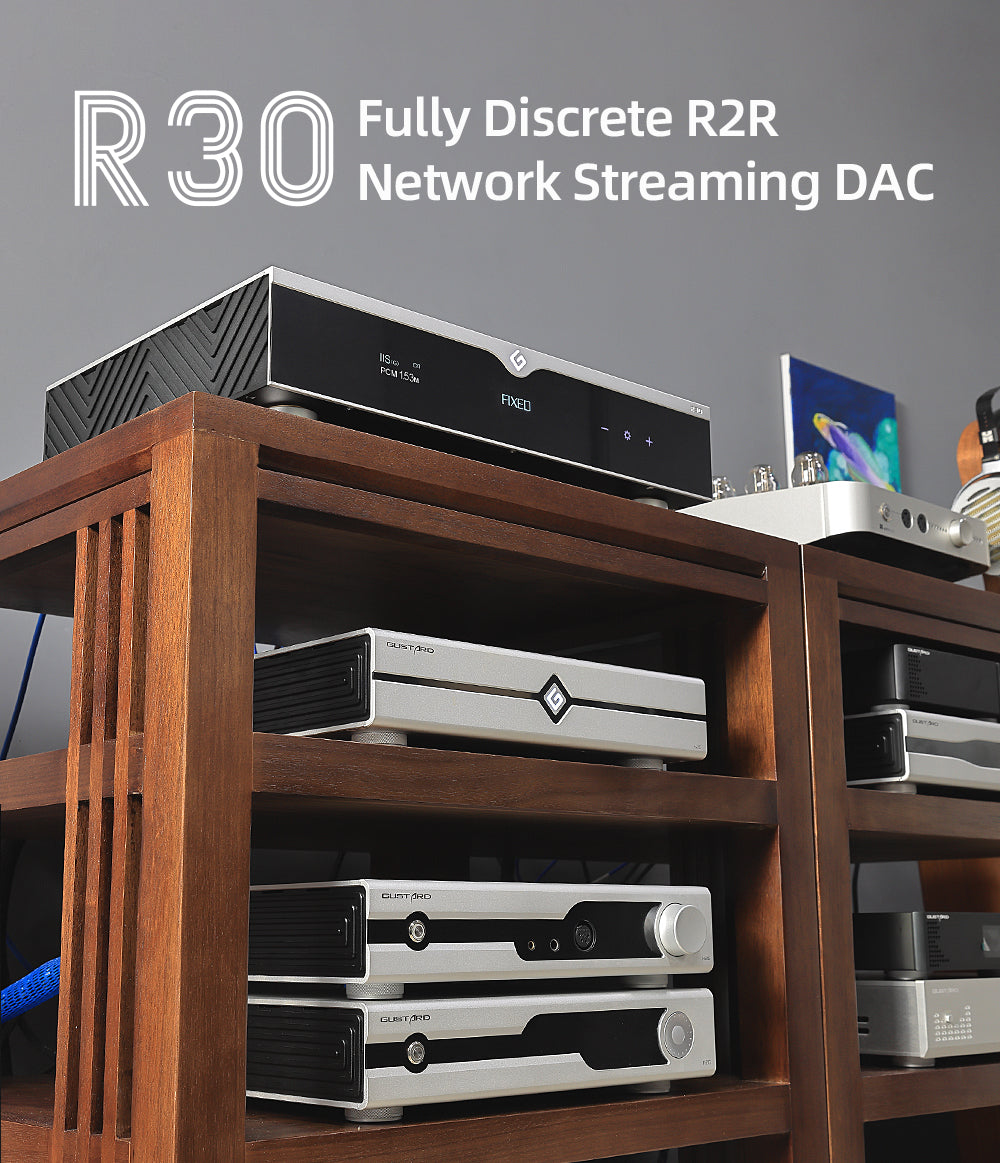

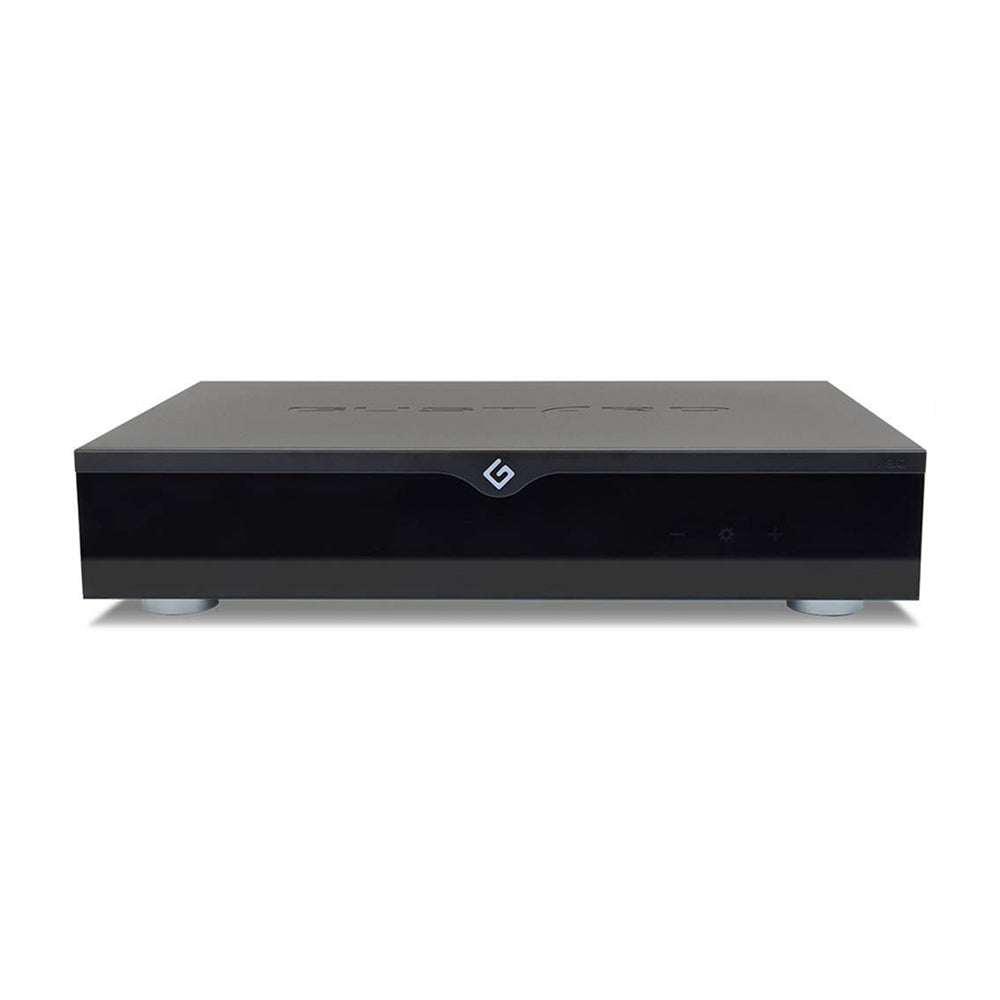

Gustard R30

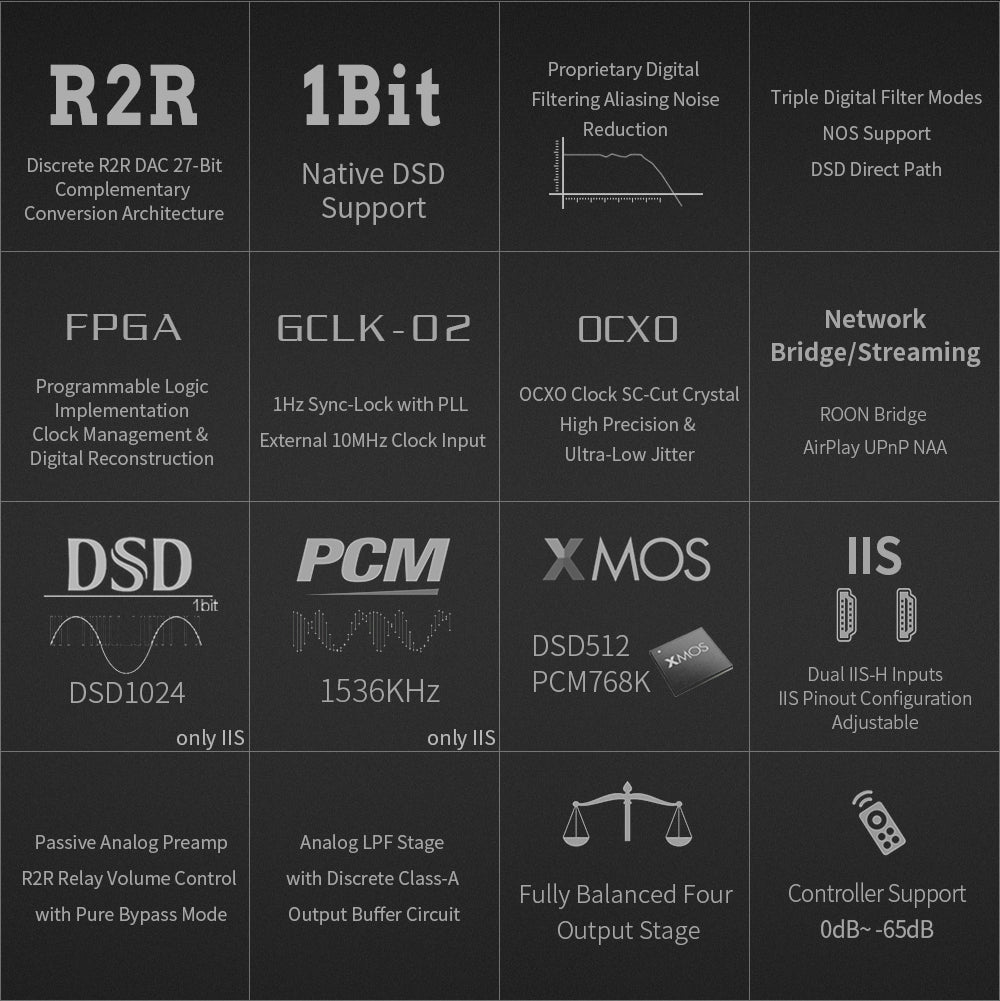

Desktop R2R 27BIT DAC

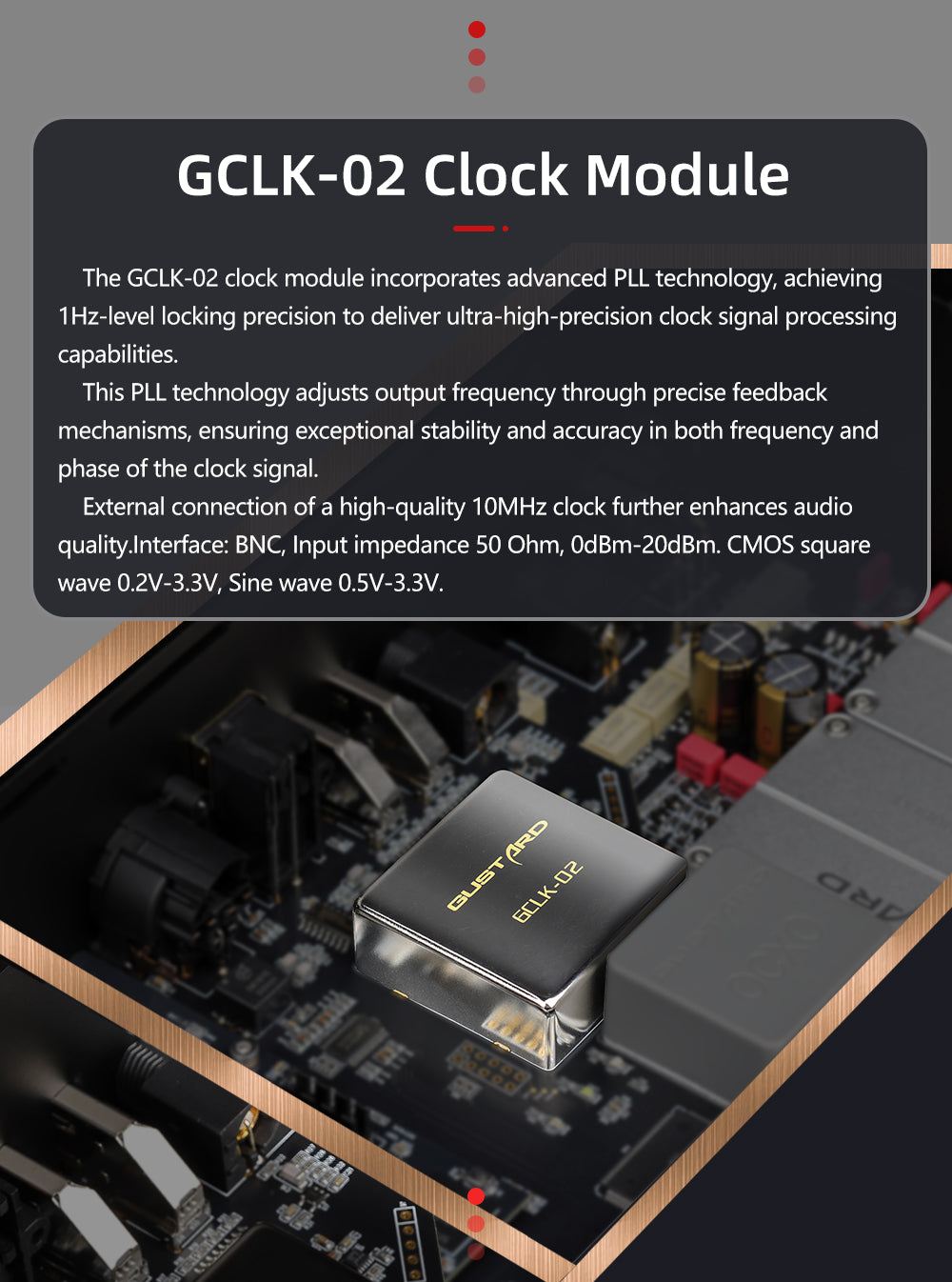

  • 10M Master Reference Clock Input Ready

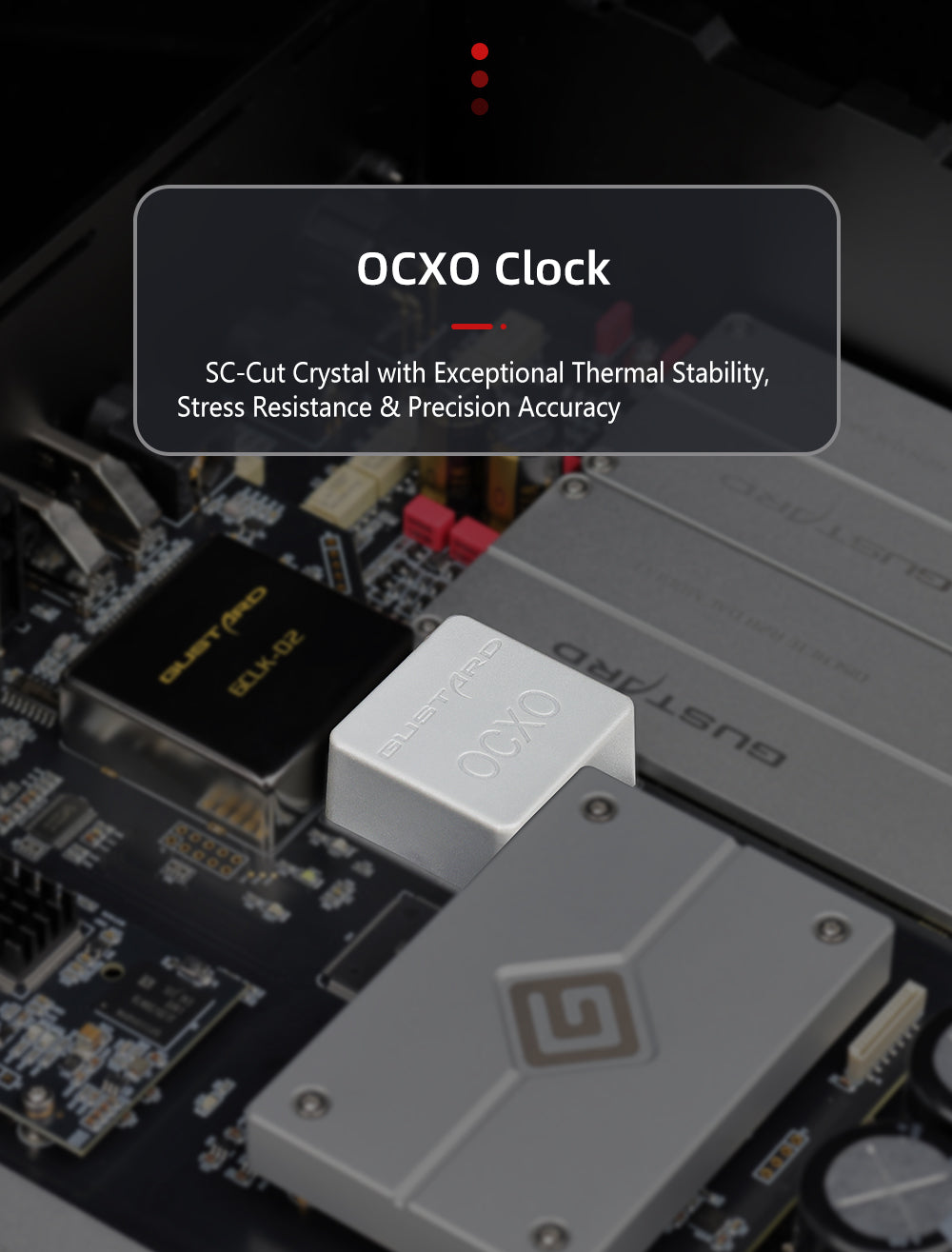

  • K2 Technology Ultra Low Noise Clock Synthesizer

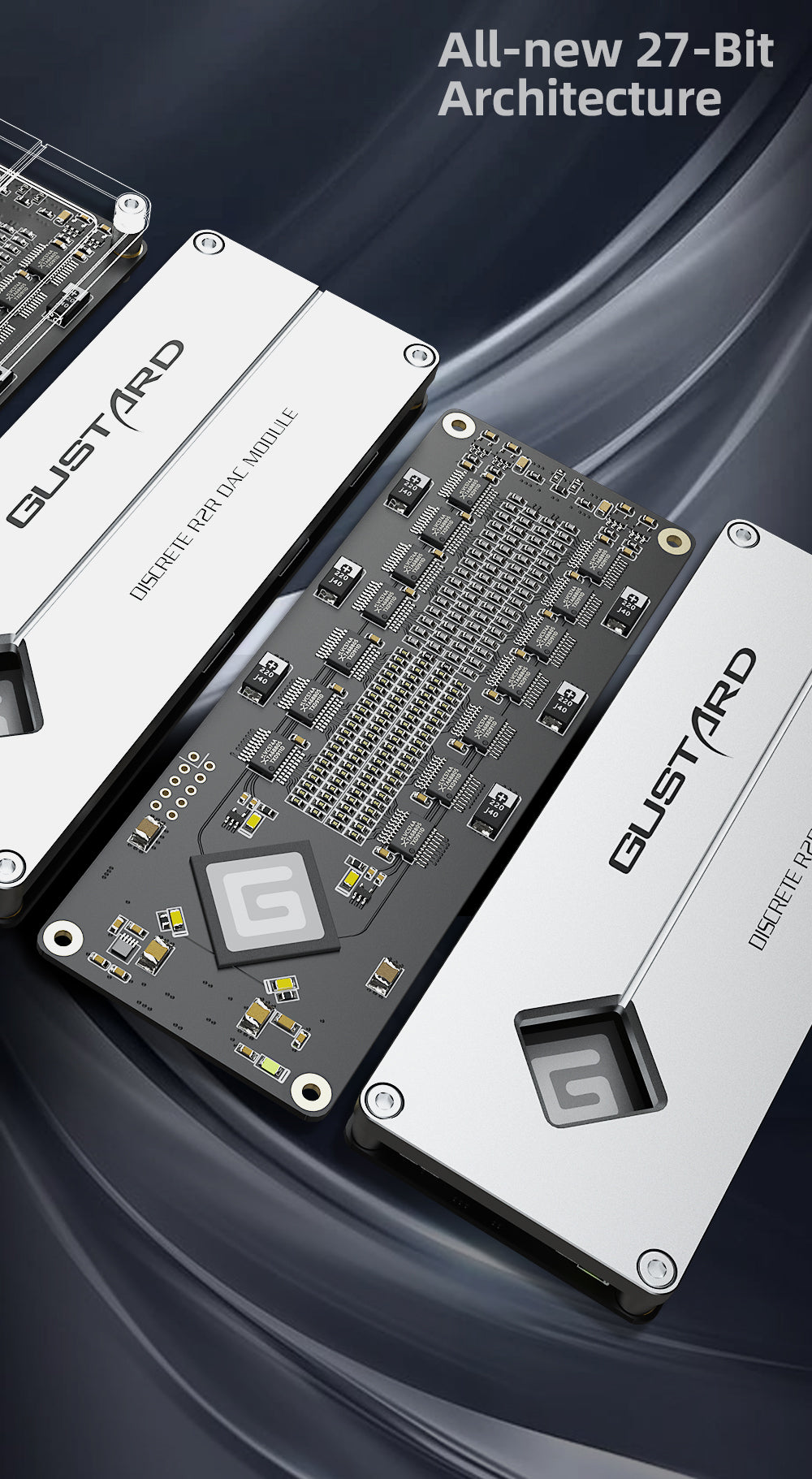

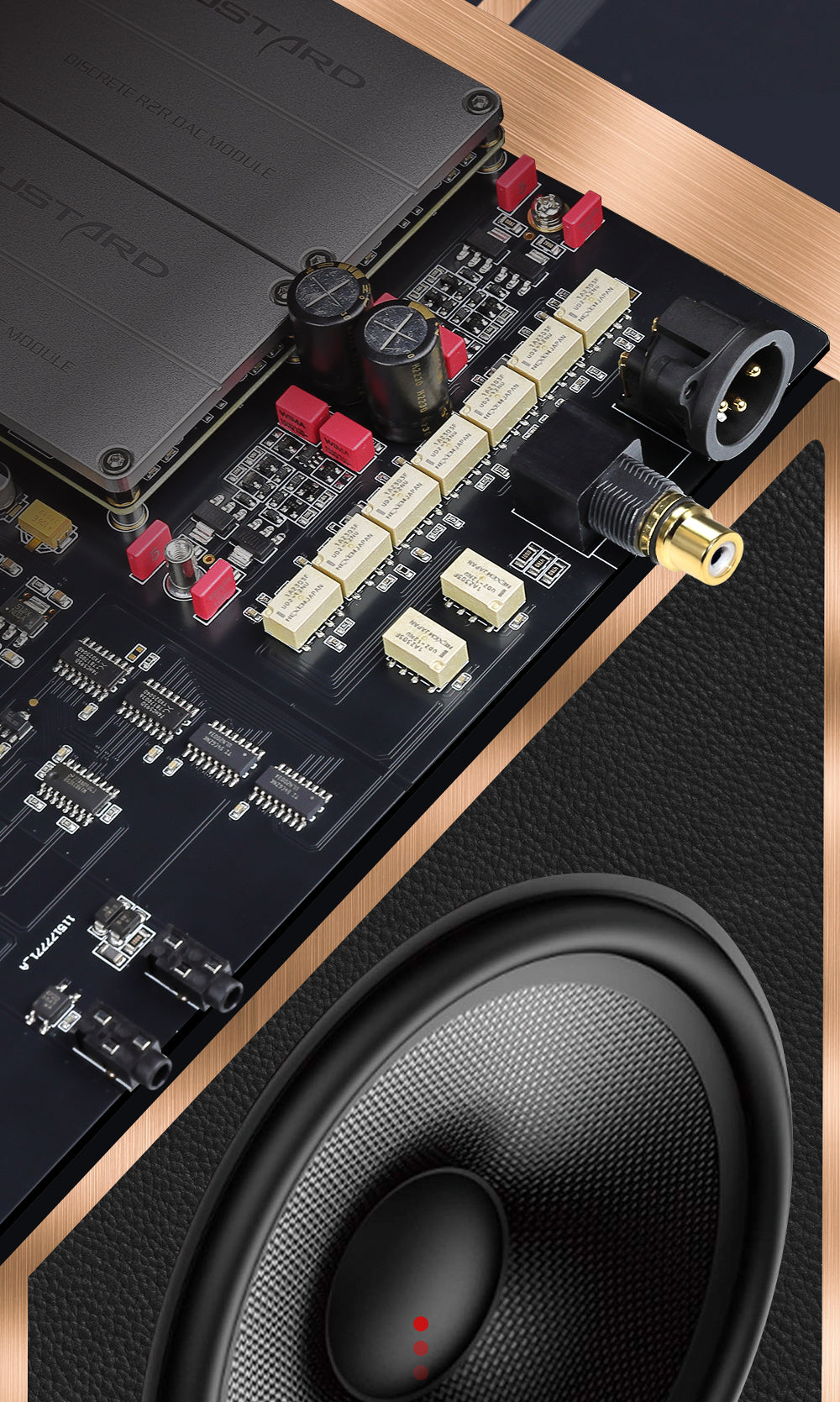

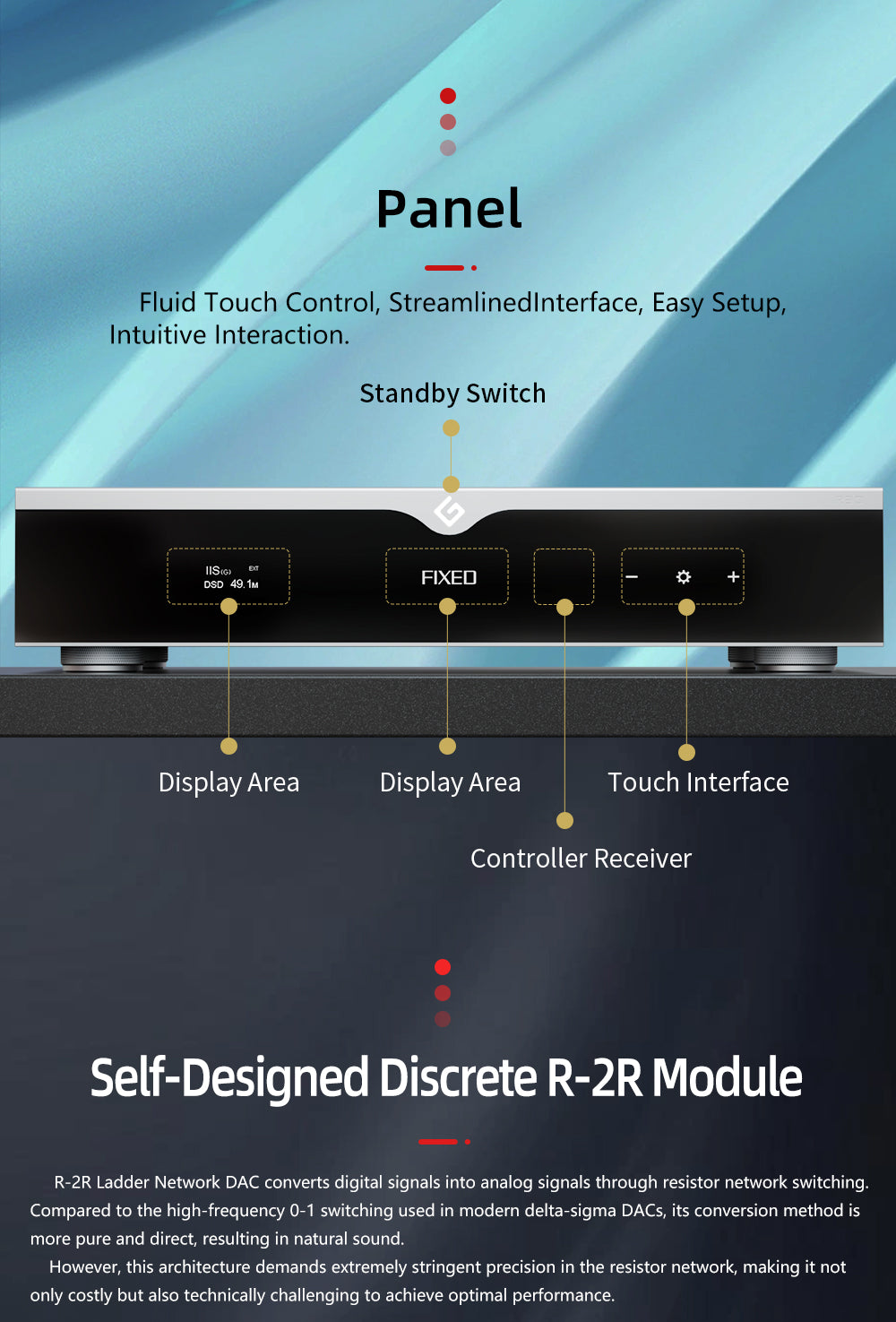

  • Discrete R2R DAC

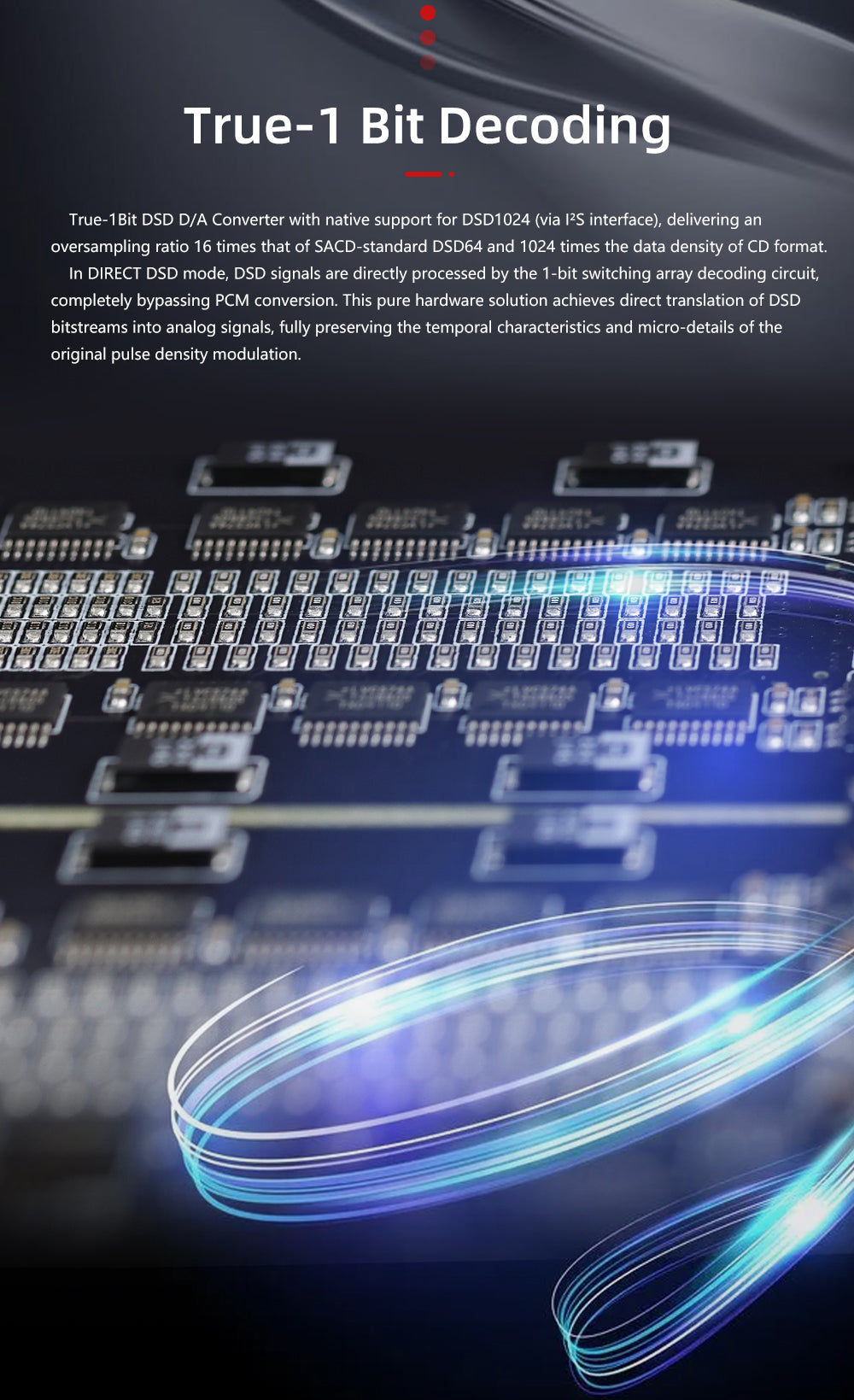

  • Sony 1Bit Direct DSD Conversion Circuit

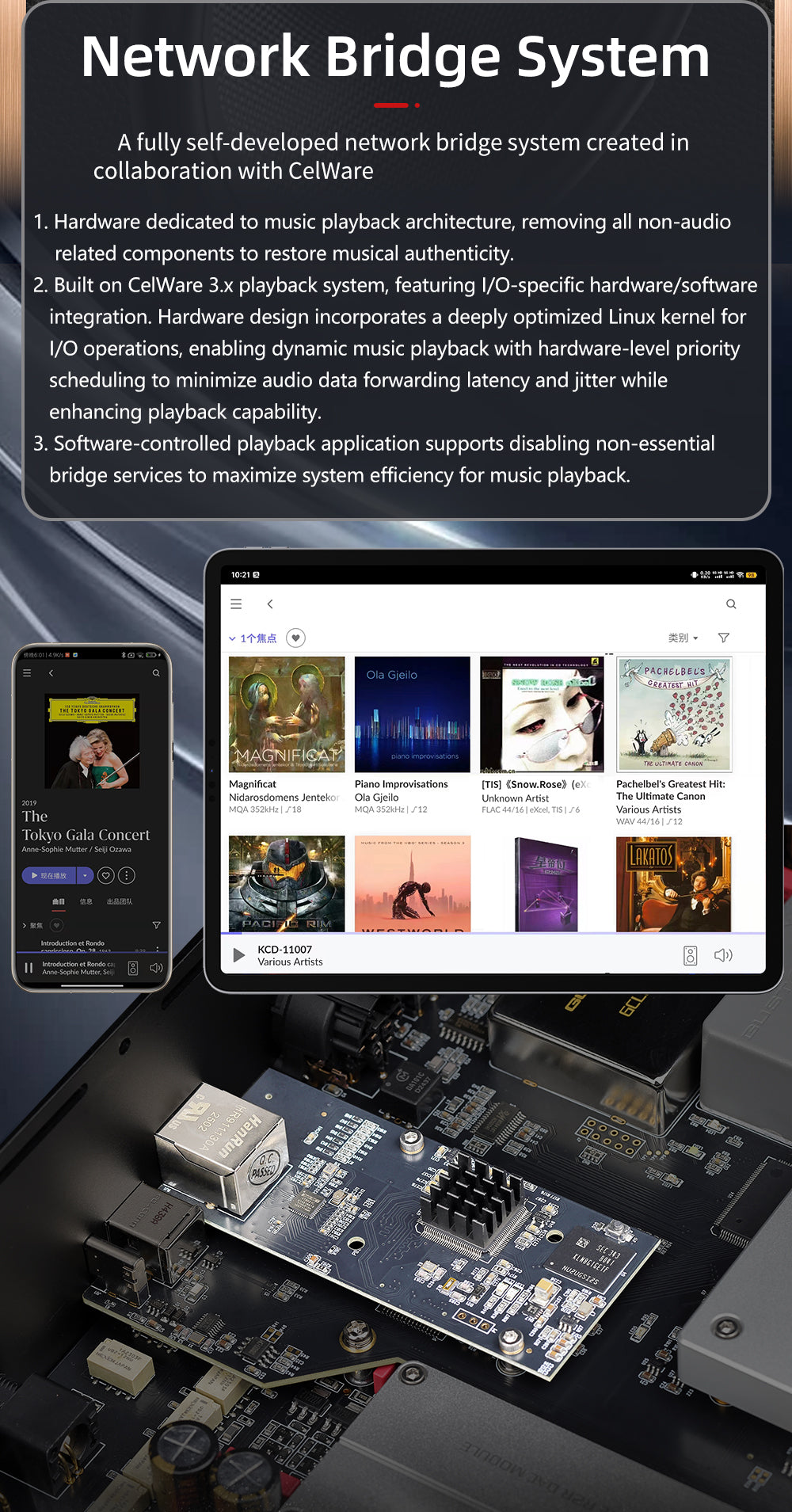

  • Roon Bridge Network Streaming Modules

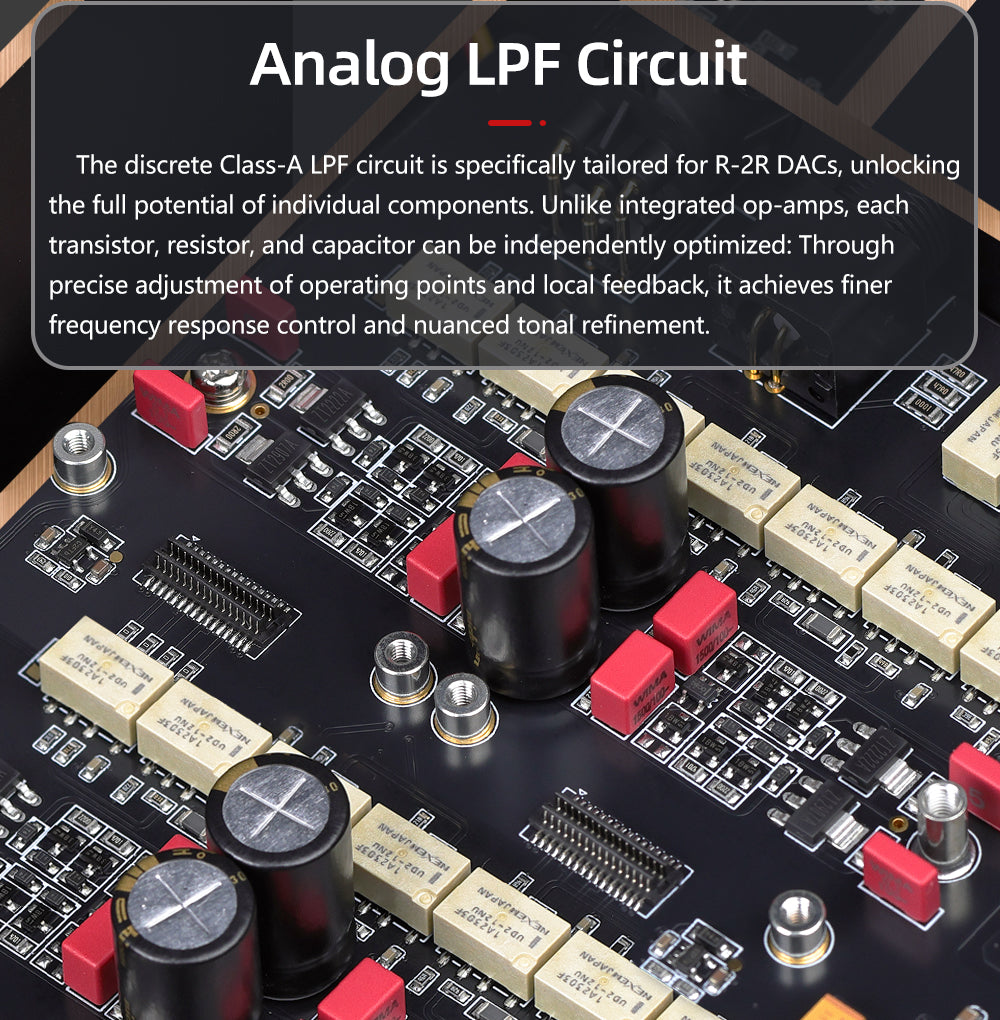

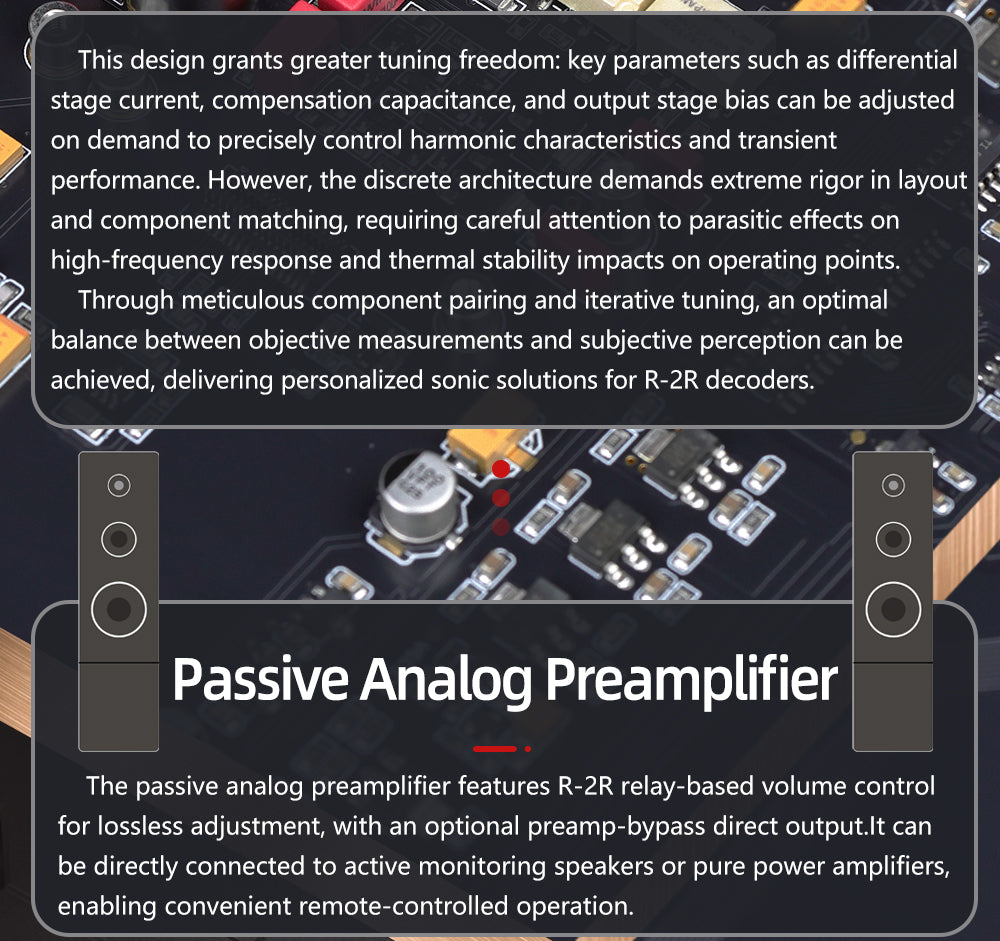

  • Discrete 8 Channels Hybrid I/V Power Conversion Circuit for R2R
Silver
Black
Regular price $3,599.00
Sale price $3,599.00 Regular price
Unit price
Save

VAT Included for UK Customers.

For international customers, VAT is already removed from the displayed price. International Customers will incur local import taxes and duty charges.

VAT and Import Taxes FAQ
Gustard R30

Gustard R30

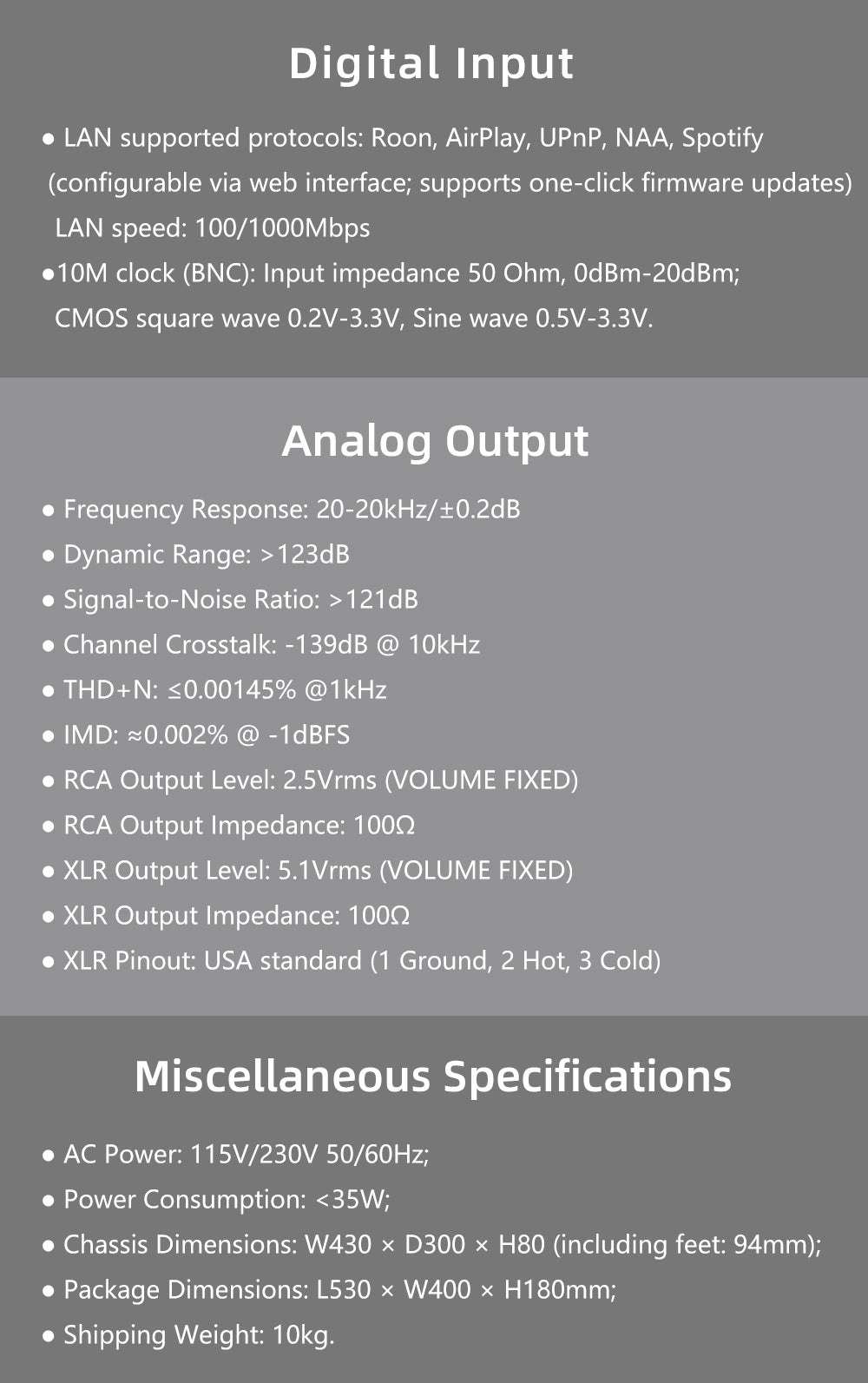

Technical Specifications

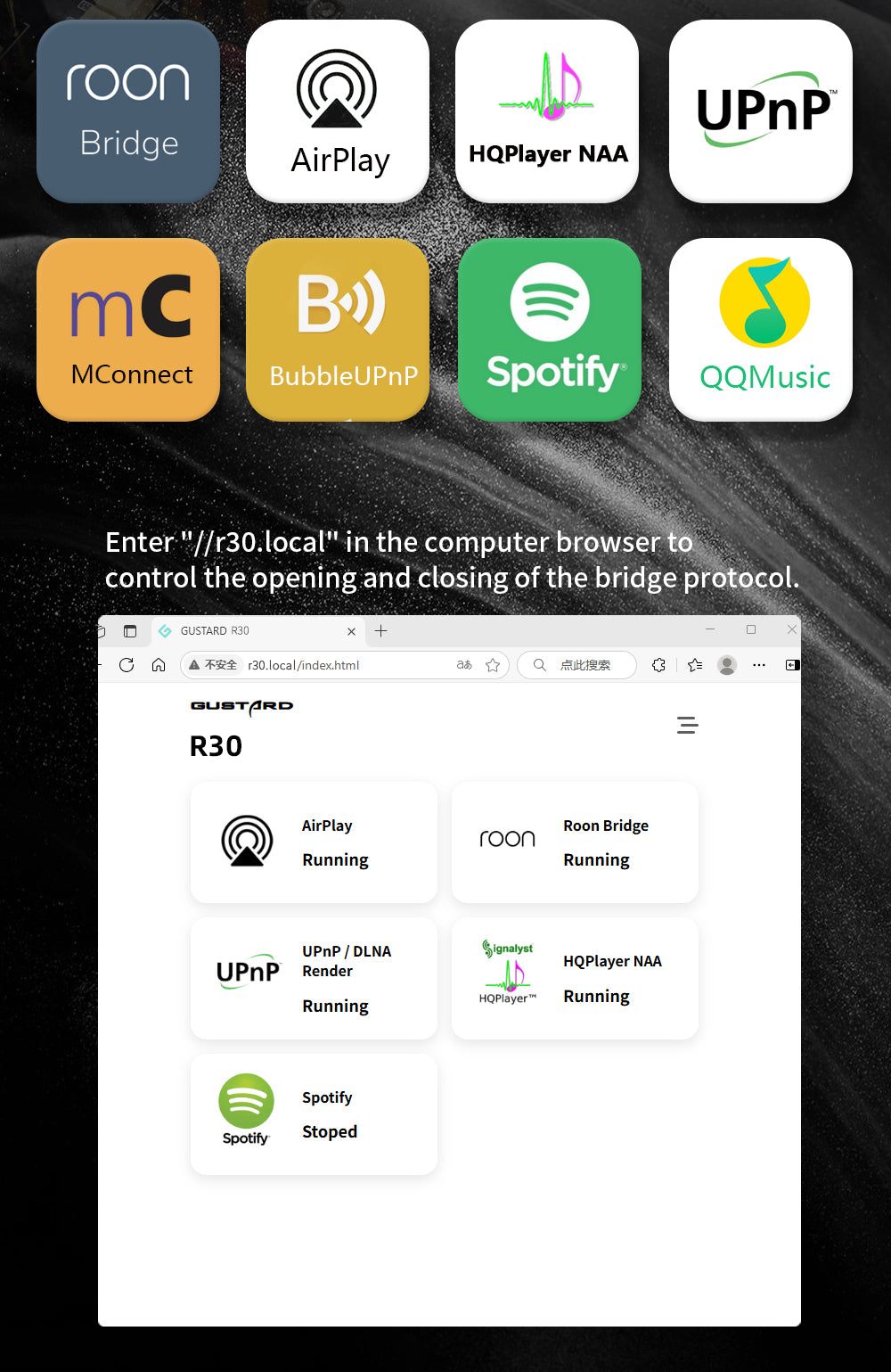

LAN Supported Protocols
Roon, Airplay, UPnP, NAA, Spotify (configurable, online upgrade)
LAN Speed
100/1000 Mbps
10M Clock Input (BNC)
50Ξ©, 0 dBm ~ 20 dBm, CMOS 0.2V–3.3V, sine wave 0.5V–3.3V

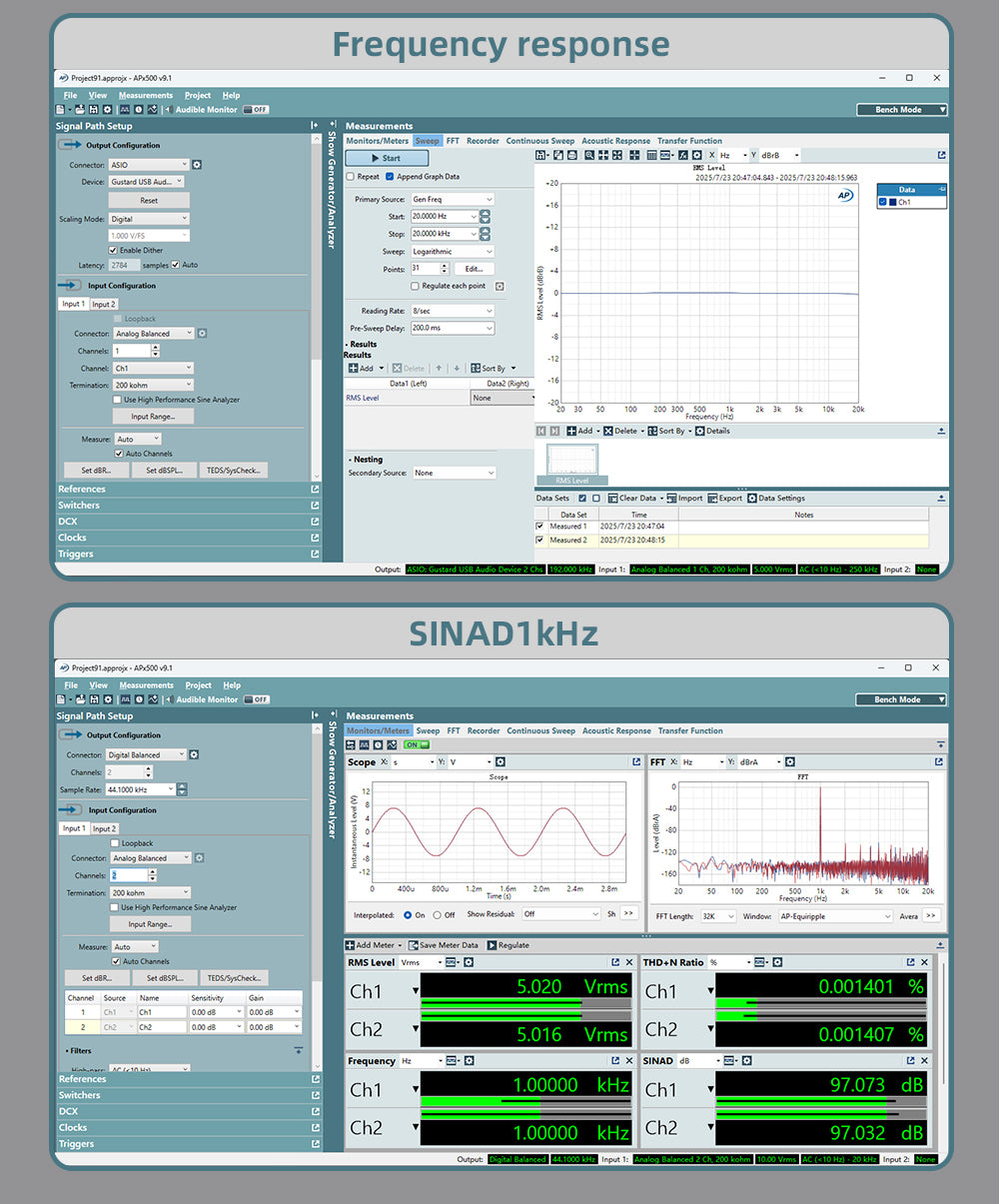

Frequency Response
20 Hz – 20 kHz / Β±0.2 dB

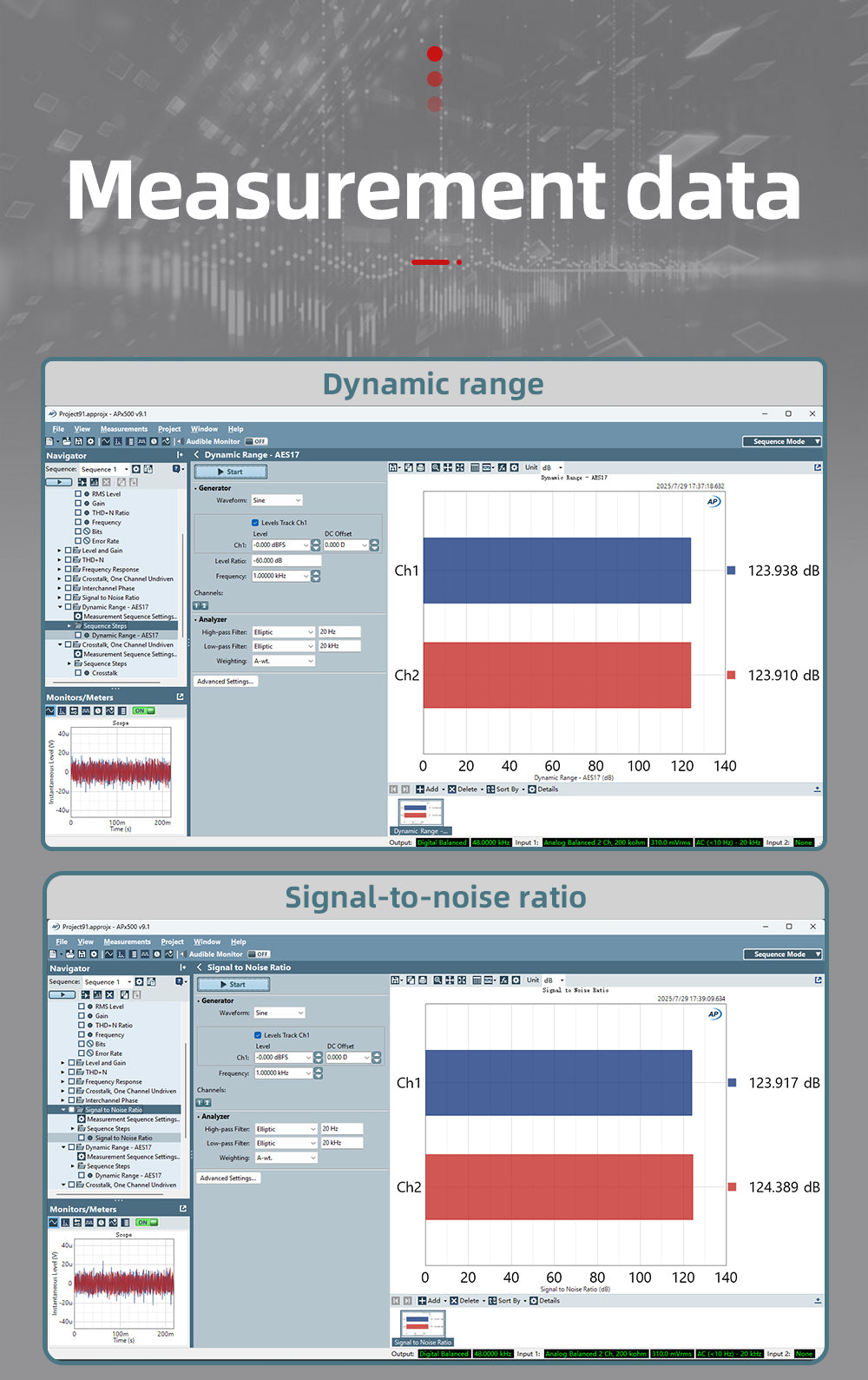

Dynamic Range
>123 dB
Signal-to-Noise Ratio
>121 dB

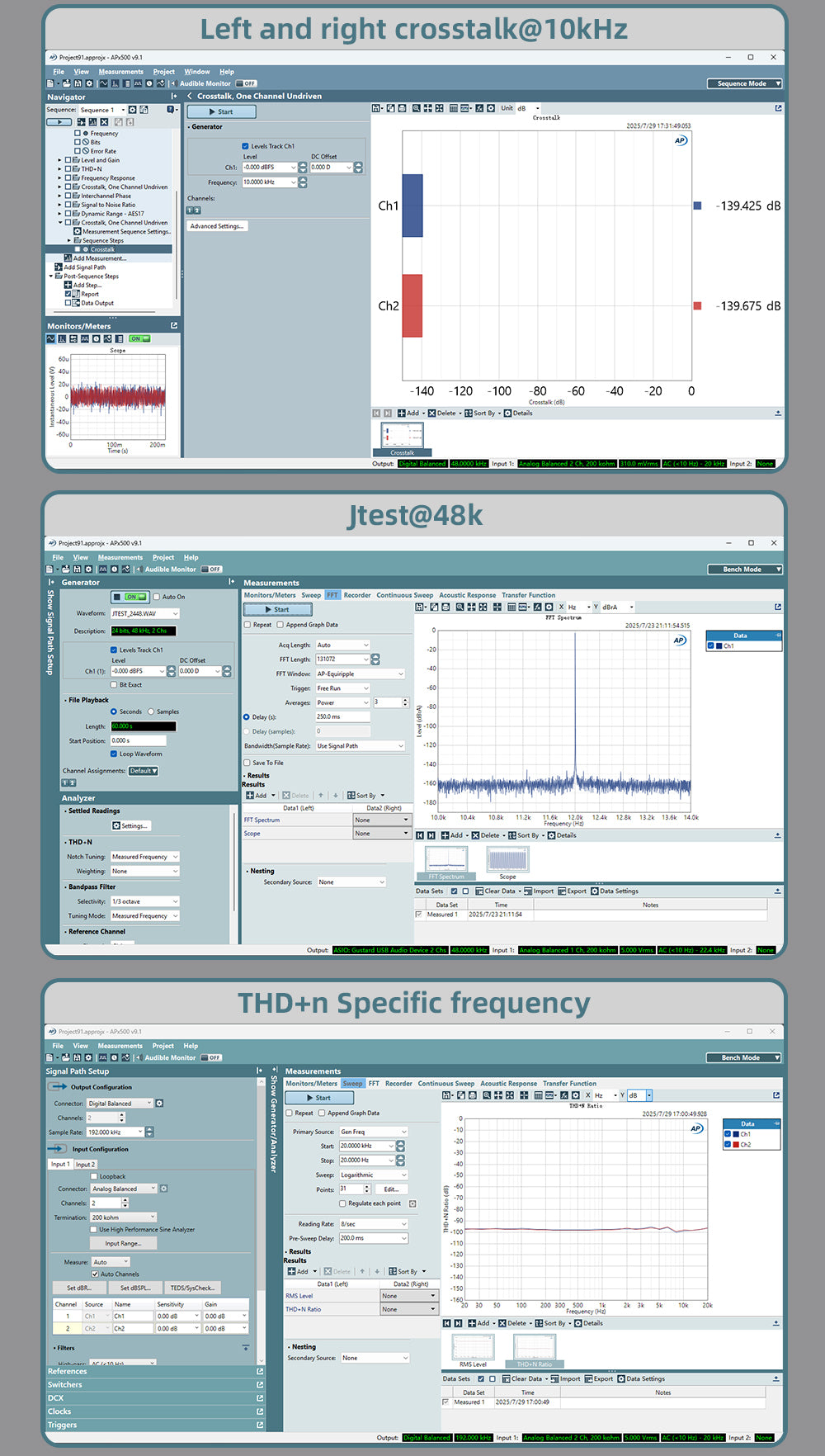

Channel Crosstalk
-139 dB @ 10 kHz
THD+N
≀0.00145% @ 1 kHz
IMD
β‰ˆ0.002% @ -1 dBFS
RCA Output
2.5 Vrms (fixed), 100Ξ© impedance
XLR Output
5.1 Vrms (fixed), 100Ξ© impedance, US standard (Pin1 GND, Pin2 hot, Pin3 cold)

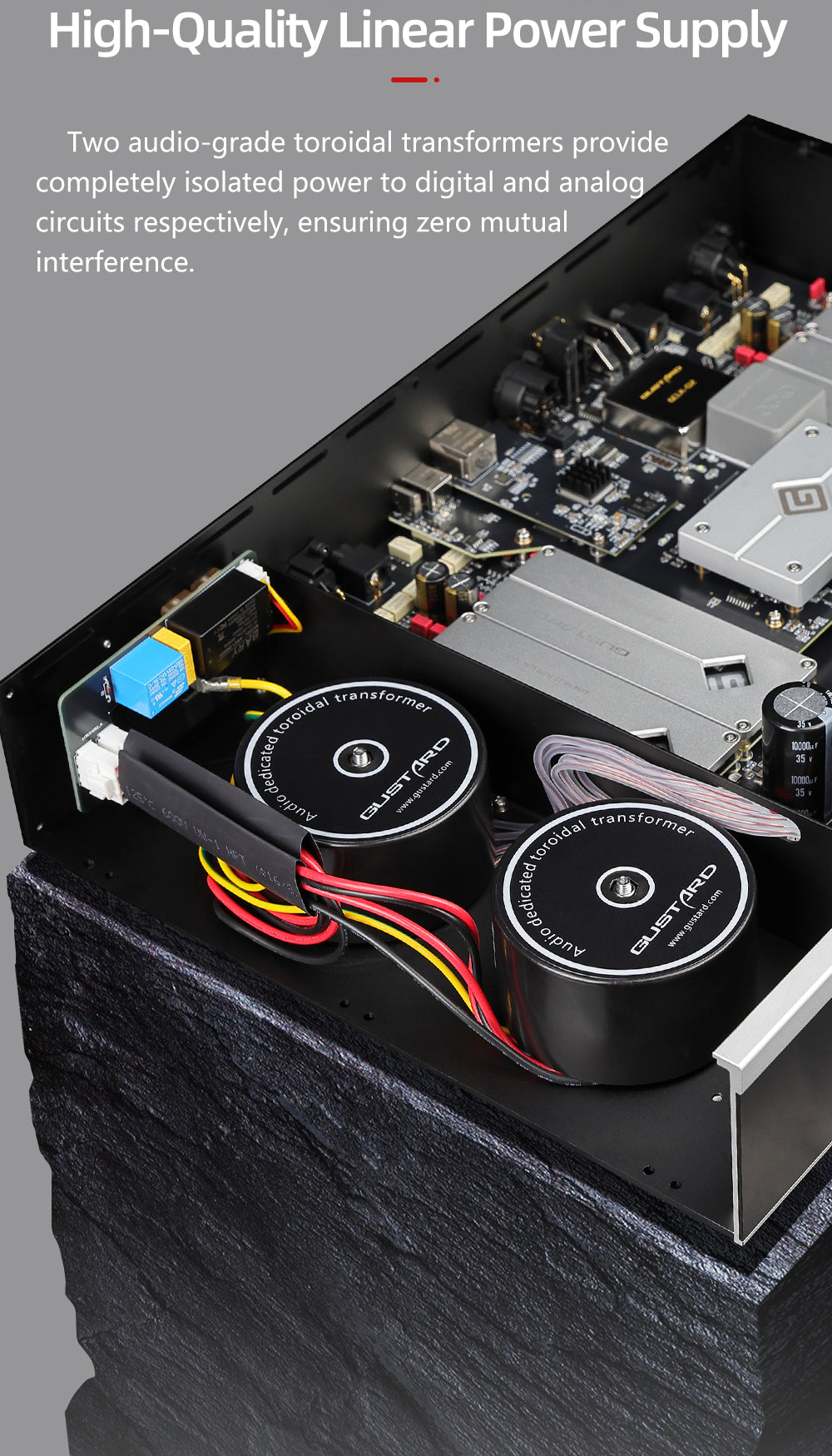

Power Supply
AC 115V / 230V, 50/60 Hz
Power Consumption
<30 W

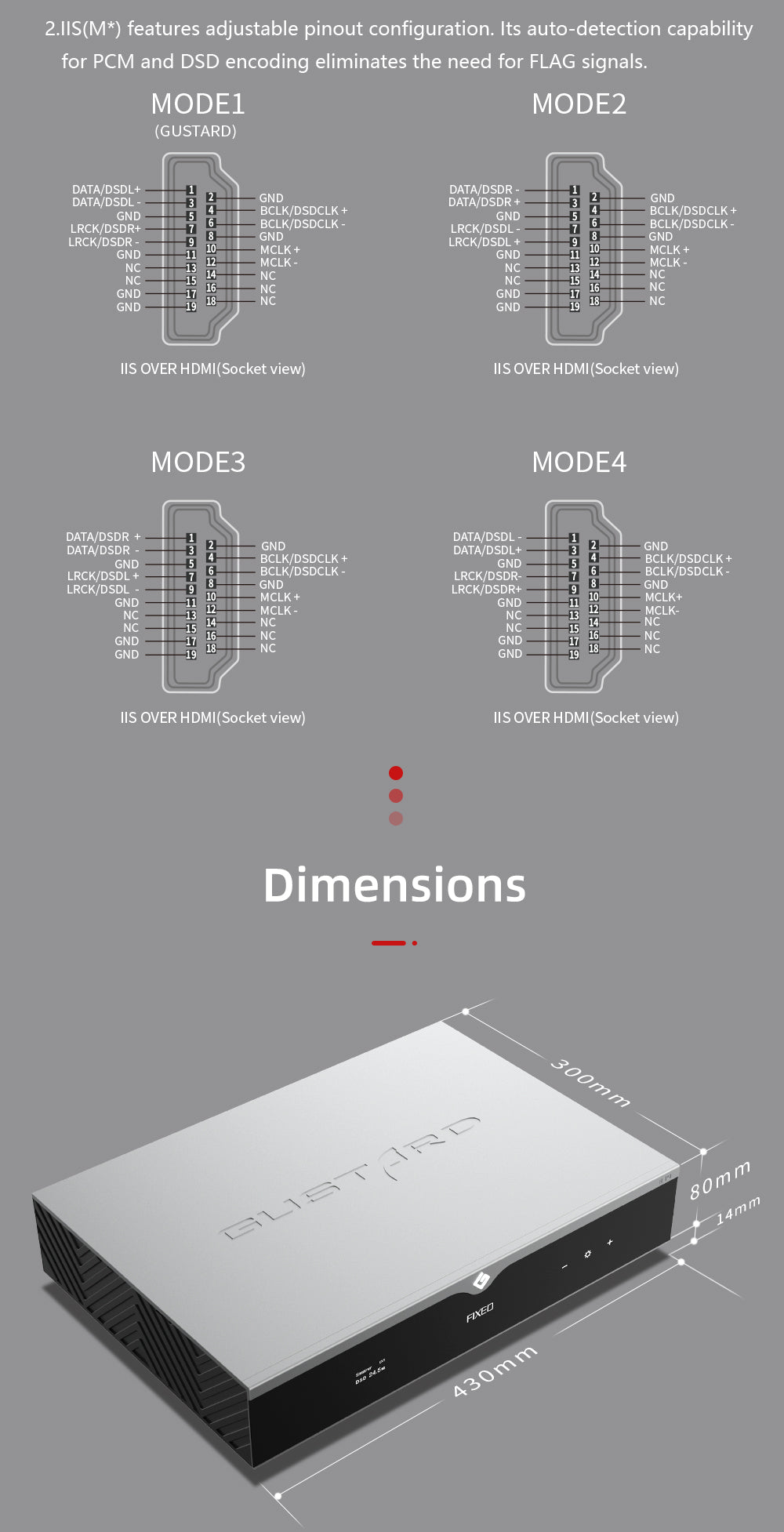

Dimensions
430 Γ— 300 Γ— 80 mm (with feet 94 mm)
Package Size
530 Γ— 400 Γ— 180 mm
Weight
10 kg (with packaging)
