Holo Audio Red

Holo Audio Red

In Stock and Ready to Ship
In Stock - Ships in 1 to 3 business days

Monday to Friday, except bank holidays. Subject to stock availability and security checks.

Network Streamer & DDC (I2S – USB) DSD1024

  • Featuring digital input and output options.
  • Simple setup user-friendly software setup.
  • Stream Internet radio stations, streaming music services and your own local music library.
  • Control music wirelessly with a controller app AirPlay 2 lets you play music from your wireless device.
  • DDC – Digital (USB) to Digital (I2S HDMI, Coax BNC, RCA, Optical, AES/EBU) Converter.
  • Configure the I²S pinout through the DIP switch [1,2] at the bottom of the chassis.
Low Stock
Low Stock
Regular price
$829.00
Regular price
Sale price
$829.00
Sale
SHIPS FROM THE UNITED KINGDOM

All our products ship from the UK. UK prices include local VAT. International orders will incur the destination's local taxes and duty charges.

Holo Audio Red

Vendor: Holo Audio

Holo Audio Red

$829.00

Vendor: Holo Audio

Holo Audio Red

$829.00

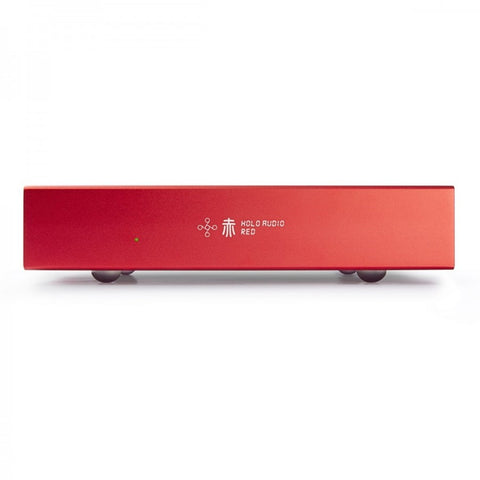

High-End Network Streamer and Digital Interface

HoloAudio “RED” is a Network Streamer with I2S HDMI output supporting up to DSD 1024, plus can be used as DDC (USB to I2S or SPDIF converter).

Employing a Pi Compute Module 4 the RED only uses the Pi4 as core system. It differs from a standard Raspberry Pi because it does not have all peripheral components on board, but has been developed by HoloAudio for optimized audio reproduction. The advantage is that it can be used with a lot of software and is therefore versatile.

Once connected to your network via its RJ45 Gigabit Ethernet input, the RED can, via a web interface, access many streaming services such as Spotify, Deezer, Qobuz, Tidal or web radio. It is also compatible with a long list of network protocols such as AirPlay 2, UPnP, Spotify Connect, Tidal Connect, Squeezelite, or NAA HQPlayer.

For its connectivity, the Holo Audio RED provides input RJ45 Ethernet, USB-B and a Micro SD port. For the outputs, we can count on I2S via HDMI, AES/EBU, coaxial RCA and BNC, optical and a USB-A port.

technical specifications
Product type
Network Streamer & Digital interface
Inputs
  • 1* USB-B
  • 1* Ethernet RJ45 Gigabit 1000Mbps
  • 1* Slot Micro SD
Outputs
  • 1* I2S HDMI
  • 1* Coaxial (RCA)
  • 1* Coaxial (BNC)
  • 1* AES/EBU
  • 1* Optical Toslink
  • 1* USB-A
Supported file formats
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS, WAV, AIFF
CPU
Quad-Core Cortex-A72 (ARM v8) SoC 64 bits @ 1.5GHz
Supported sampling rates
  • PCM up to 32bit 768kHz
  • Native DSD up to DSD512
Compatible OS
  • iOS
  • Android
  • Windows
  • mac OS
Compatible streaming services
  • Spotify
  • Deezer
  • Qobuz
  • Tidal
  • Webradios
Supported network protocols and services
  • AirPlay 2
  • Spotify Connect
  • Tidal Connect
  • HQPlayer NAA
  • UPnP
  • Squeezelite
  • Scream
Dimensions (W*D*H)
220*146*46mm
Supply voltage
100-240VAC (cable not included)
Color
Red
Weight
2kg
Package
  • 1* Holo Audio RED
  • 1* Micro SD card (installed software)
