  • iBasso PB6 Macaw

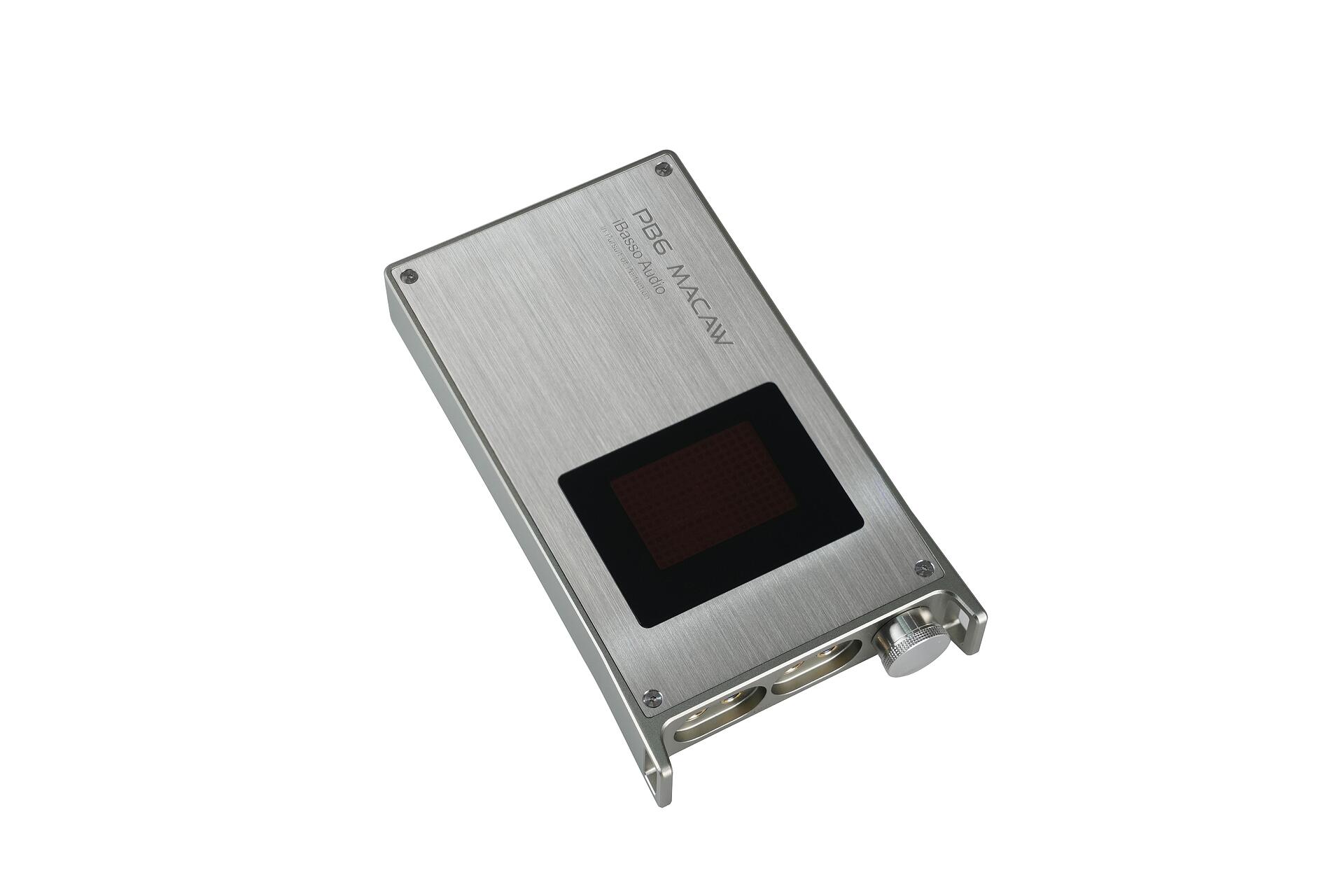

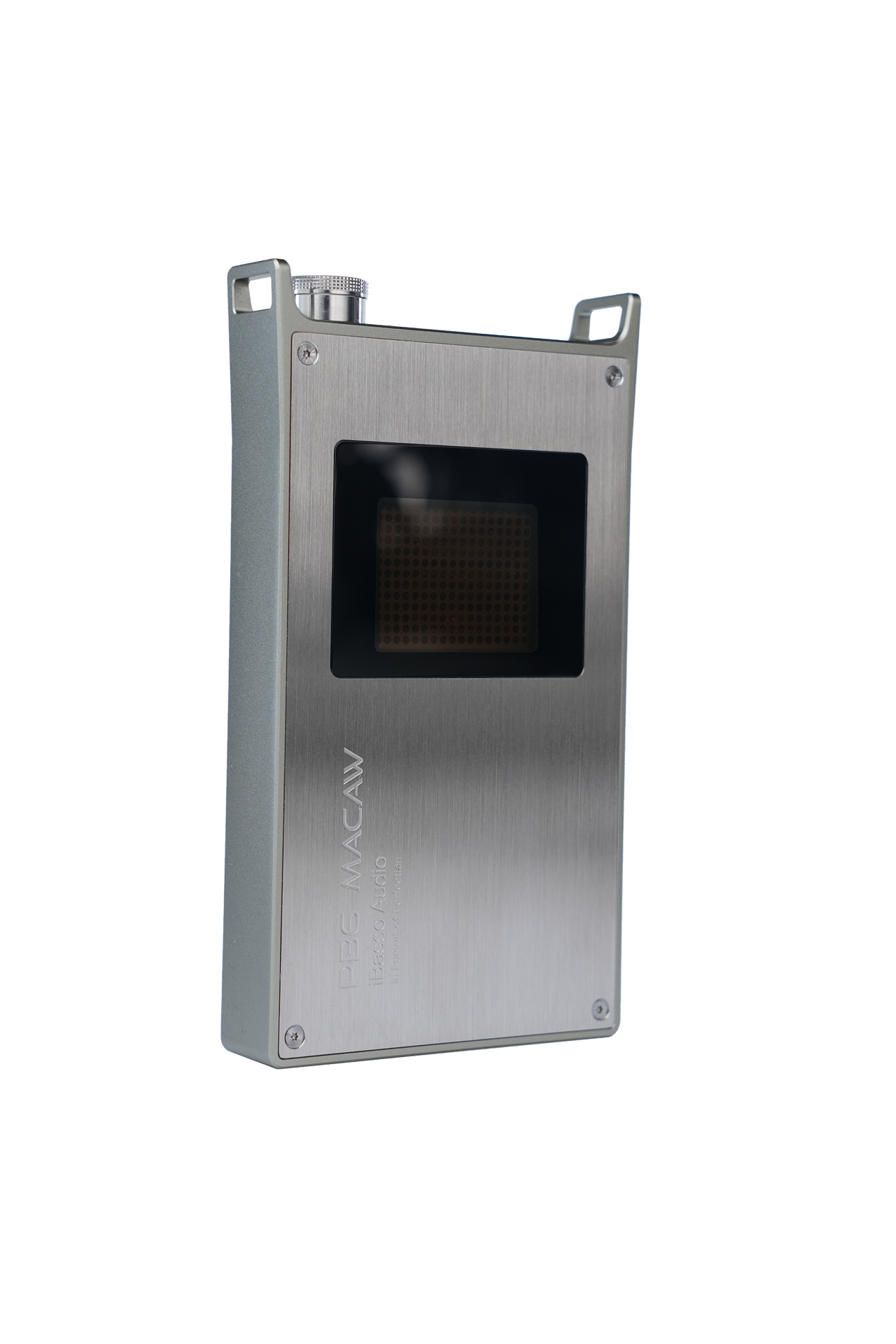

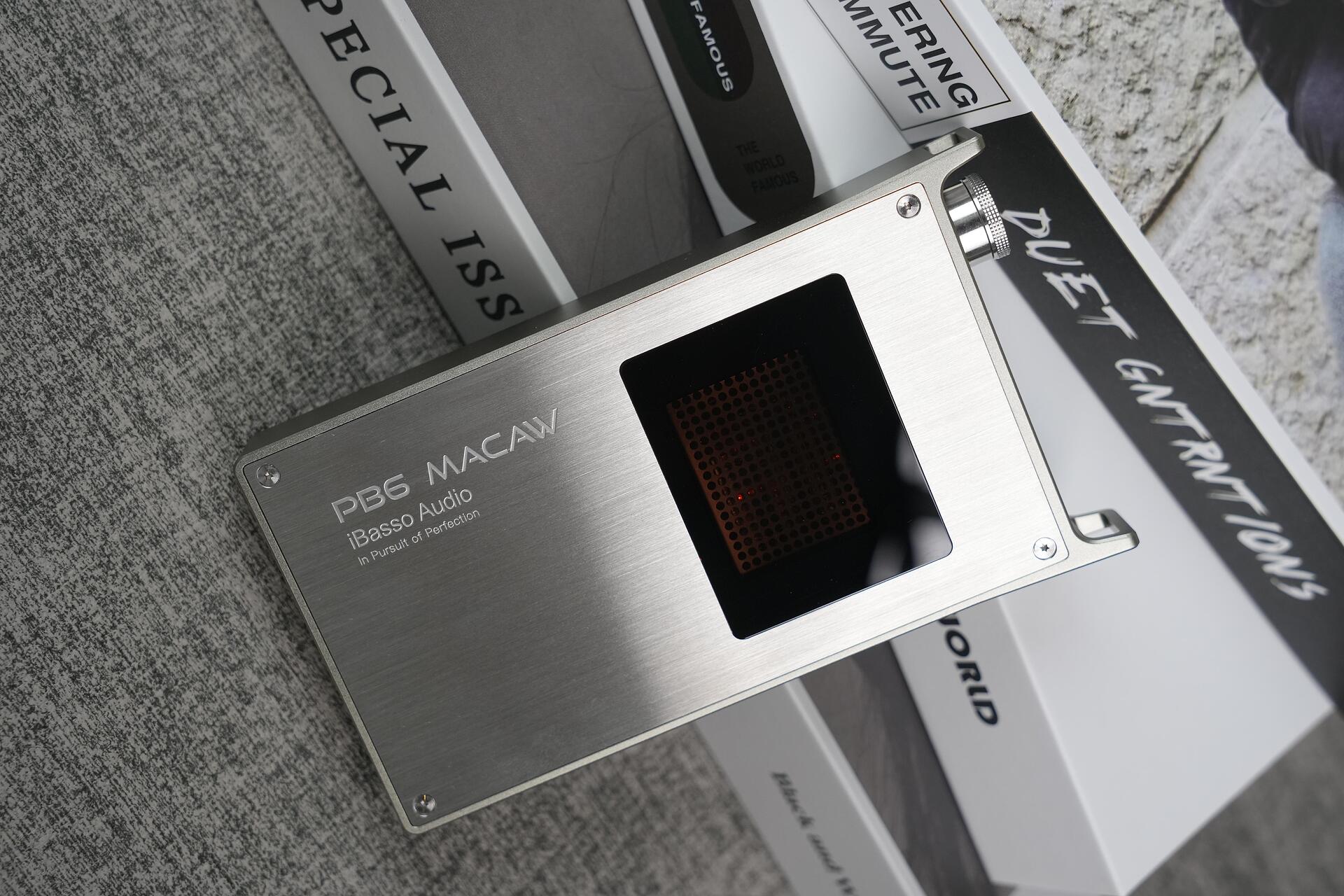

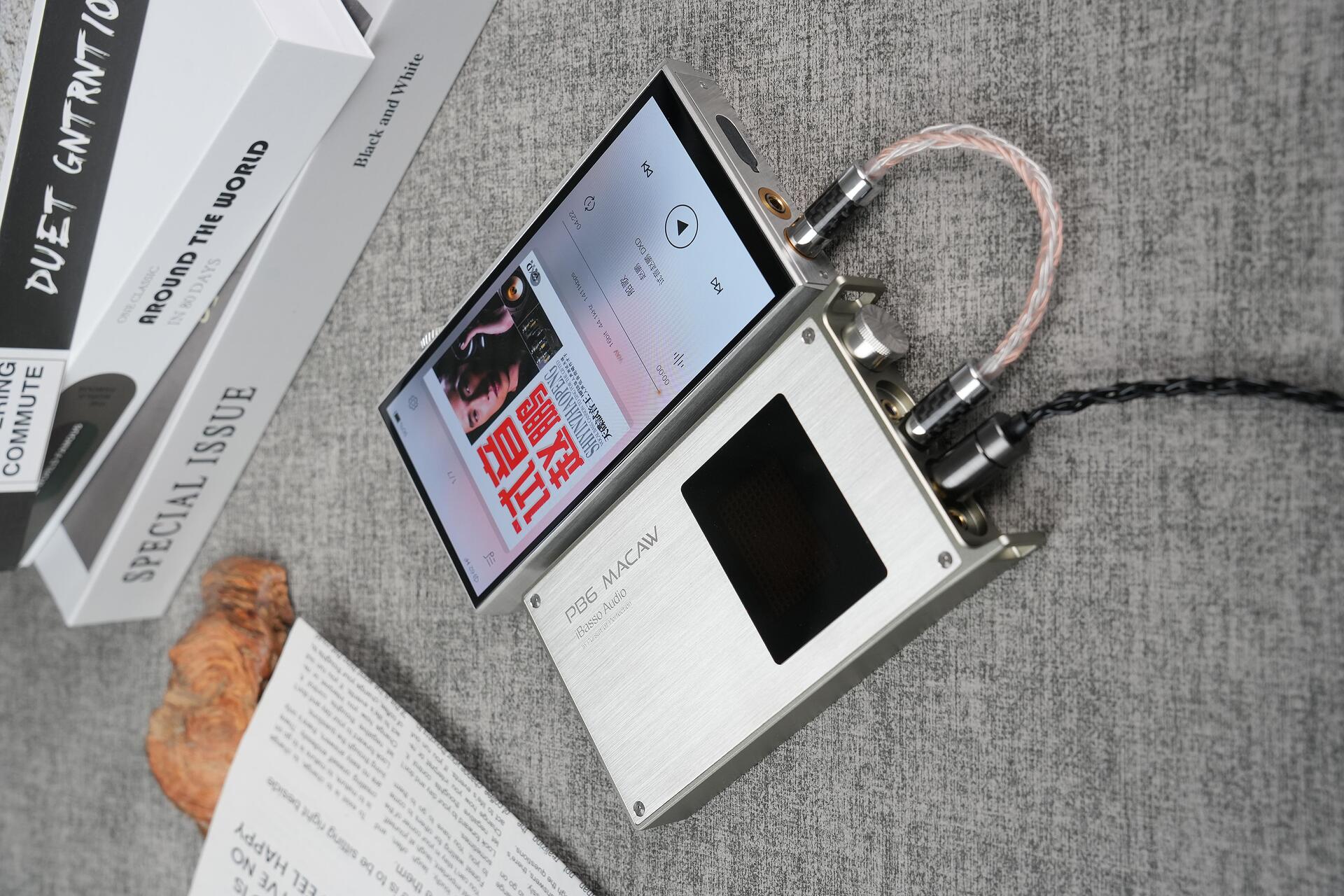

iBasso PB6 Macaw

Portable Balanced Tube Headphone Amplifier

  • Powered by four Military-Grade JAN6418 Tubes
  • Supports both Tube and Class AB output modes
  • Perfectly matched 4-channel output
  • Desktop-grade performance in portable form
Regular price $456.00
Sale price $456.00 Regular price
Unit price
Save

VAT Included for UK Customers.

For international customers, VAT is already removed from the displayed price. International Customers will incur local import taxes and duty charges.

VAT and Import Taxes FAQ
iBasso PB6 Macaw

iBasso PB6 Macaw

Regular price $456.00
Sale price $456.00 Regular price
Unit price

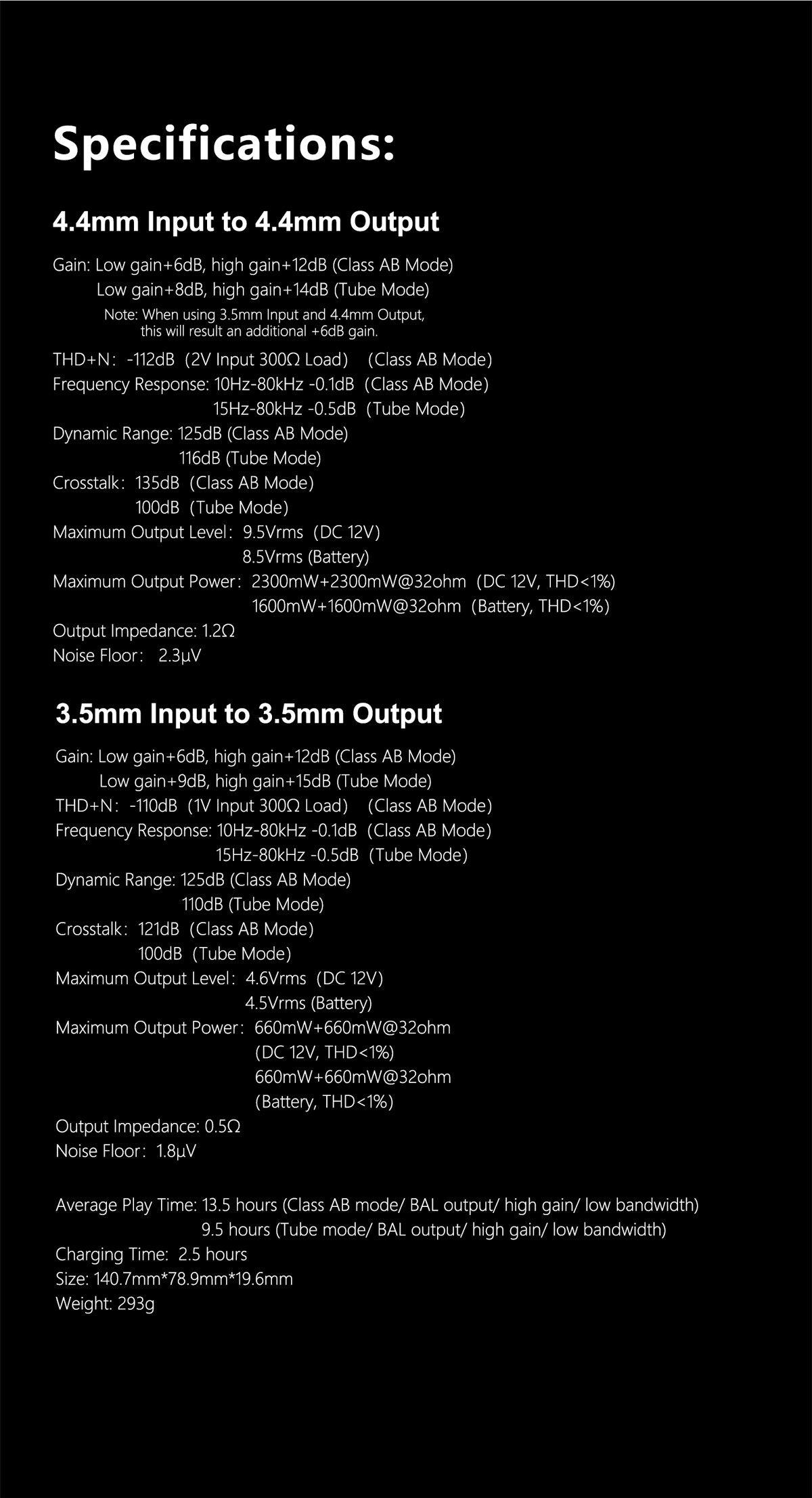

Technical Specifications

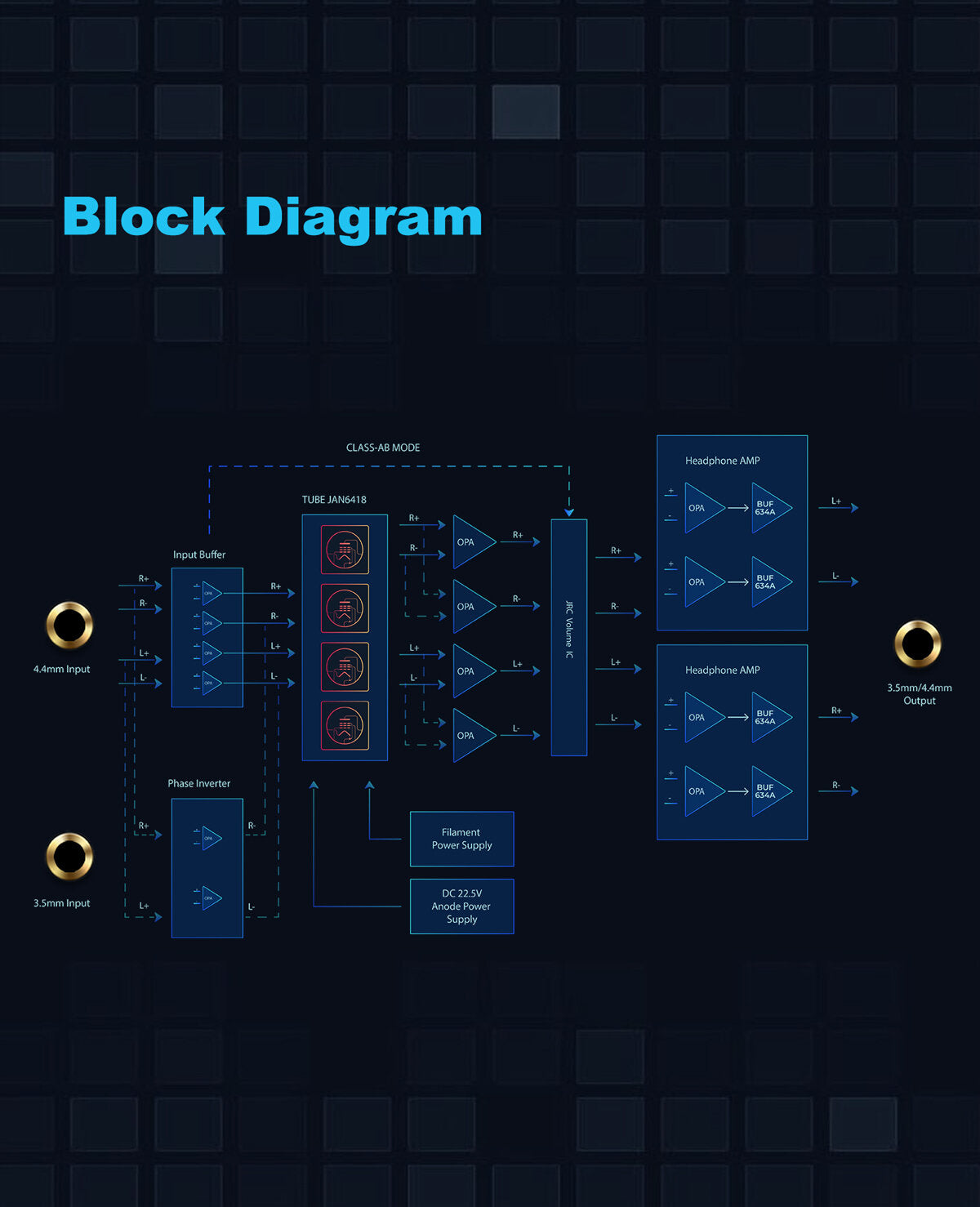

Tube Architecture
4× Raytheon JAN6418 directly-heated pentode vacuum tubes (fully balanced)
Output Modes
Tube mode / Class AB mode
Bandwidth Options
Selectable: High / Low bandwidth
Battery
8.4V high-voltage polymer battery

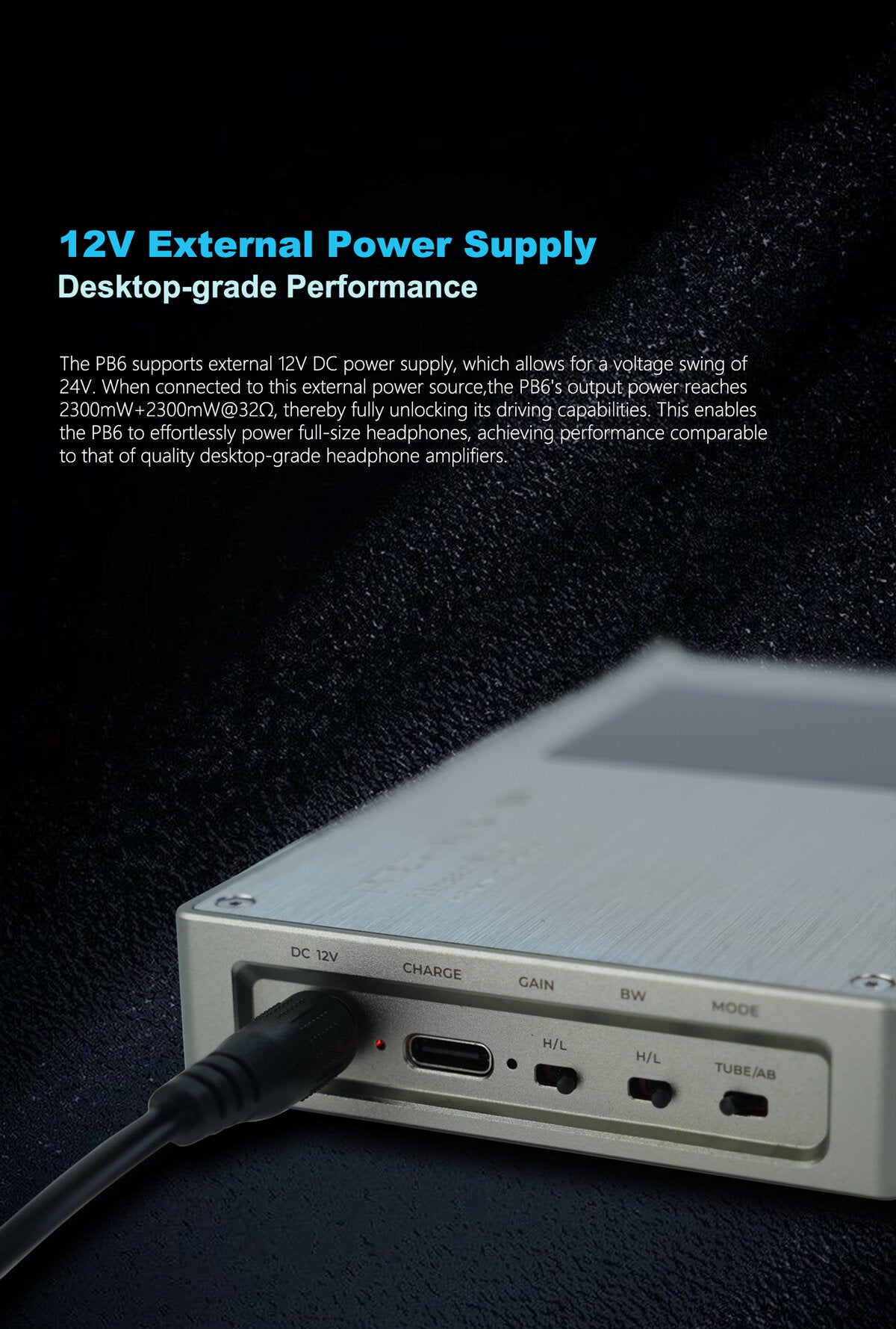

External Power
12V DC-IN (enables desktop-grade performance)
Volume Control
NJW1195A 4-channel volume IC, 0.5dB/step precision

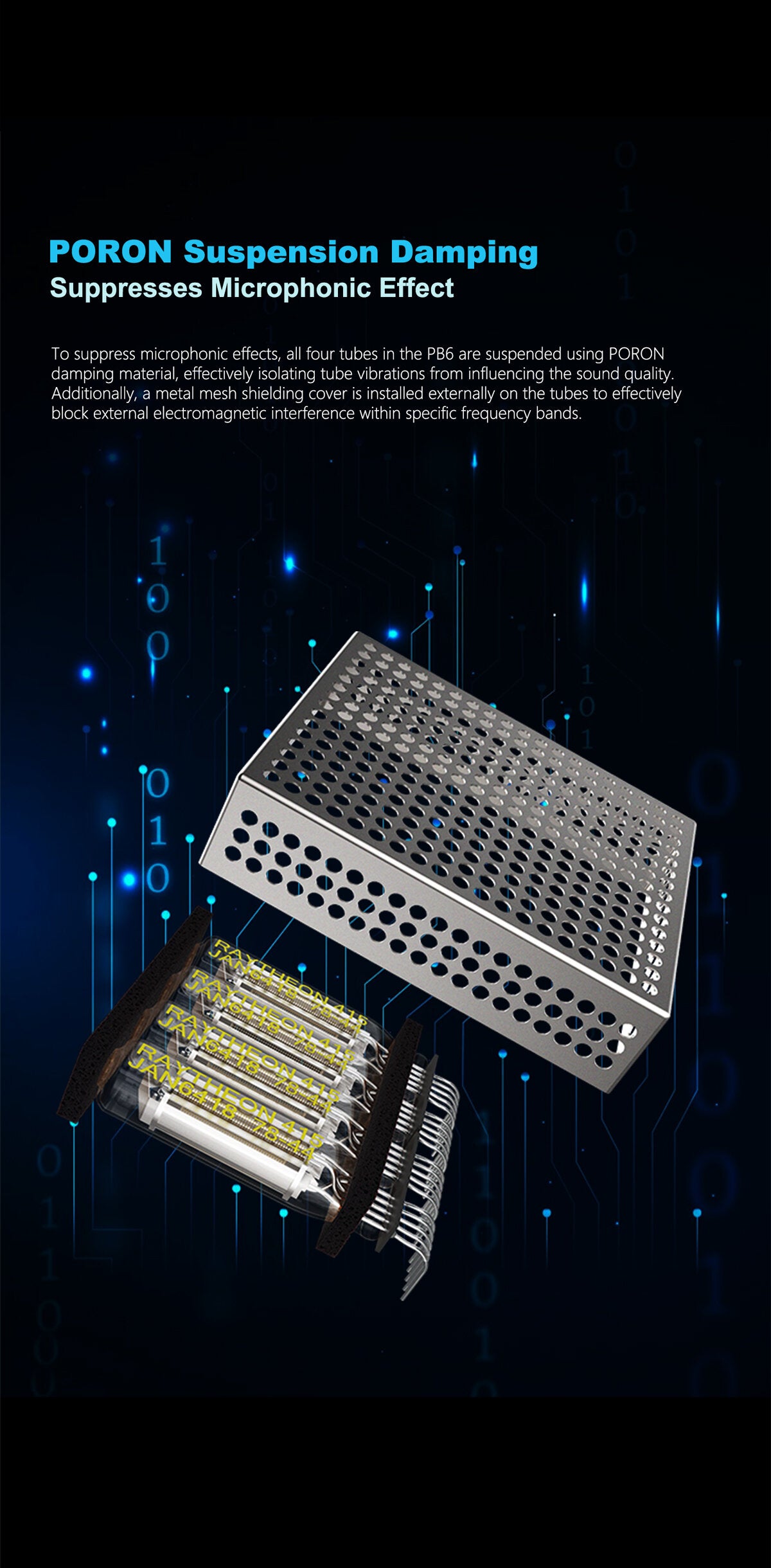

Tube Suspension
PORON damping system + mesh shielding

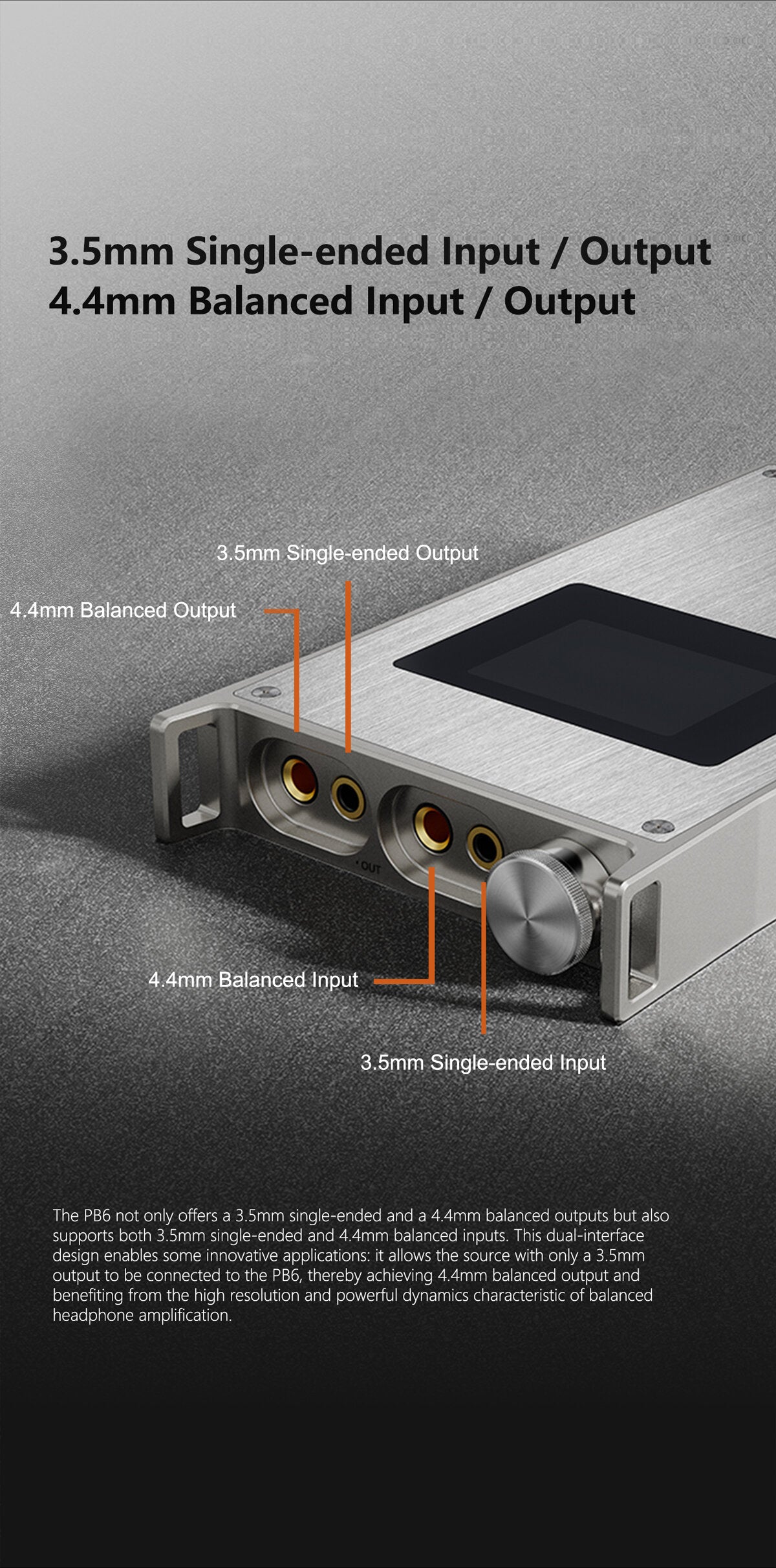

Inputs
3.5mm single-ended, 4.4mm balanced
Outputs
3.5mm single-ended, 4.4mm balanced
Size
140.7 × 78.9 × 19.6 mm
Weight
~293 g
Performance (4.4mm Input → 4.4mm Output) Class AB
Gain: +6/+12 dB | THD+N: -112 dB | Freq: 10Hz–80kHz (-0.1 dB) | Dynamic Range: 125 dB | Crosstalk: 135 dB | Max Output: 9.5 Vrms (DC) | Power: 2300mW+2300mW / 1600mW+1600mW | Impedance: 1.2 Ω | Noise: 2.3 μV
Performance (4.4mm Input → 4.4mm Output) Tube
Gain: +8/+14 dB | Freq: 15Hz–80kHz (-0.5 dB) | Dynamic Range: 116 dB | Crosstalk: 100 dB | Max Output: 8.5 Vrms (Battery)
Performance (3.5mm Input → 3.5mm Output) Class AB
Gain: +6/+12 dB | THD+N: -110 dB | Freq: 10Hz–80kHz (-0.1 dB) | Dynamic Range: 125 dB | Crosstalk: 121 dB | Max Output: 4.6 Vrms (DC) | Power: 660mW+660mW | Impedance: 0.5 Ω | Noise: 1.8 μV
Performance (3.5mm Input → 3.5mm Output) Tube
Gain: +9/+15 dB | Freq: 15Hz–80kHz (-0.5 dB) | Dynamic Range: 110 dB | Crosstalk: 100 dB | Max Output: 4.5 Vrms (Battery)

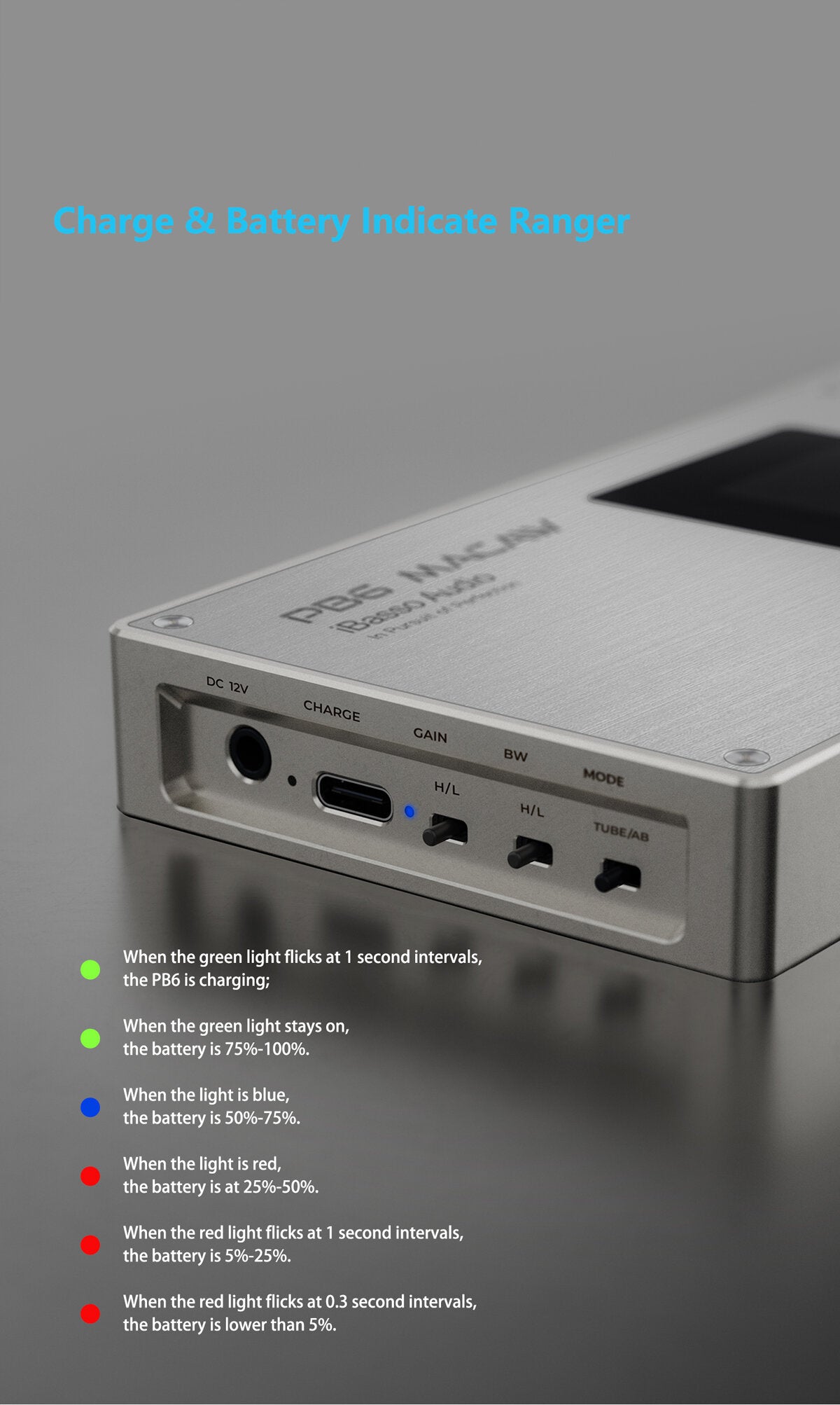

Battery Status Indicator
Green blinking (1s): Charging | Green solid: 75%–100% | Blue solid: 50%–75% | Red solid: 25%–50% | Red blinking (1s): 5%–25% | Red blinking (0.3s): Below 5%
