- Quloos QU02 - Silver
Out of Stock - Allows Pre-Orders
Message us in discord or our website chat to find out pre-order time.
- Quloos QU02 - Black

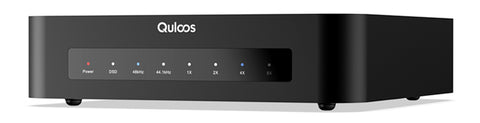

Quloos QU02
USB Bridge DDC
- 5 digital outputs
- USB galvanic isolation
- Amanero Combo384
- 2x High end Accusilicon AS338 oscillators
- Multiple linear power chips
- I2S signal generated by CPLD
- Supports DSD512
- 4 configurable I2S pinouts
- Can drive Coaxial cables up to 10m in length
Regular price
$394.00
Sale price
$394.00
Regular price
$416.00
Unit price
Save 5%
VAT Included for UK Customers.
For international customers, VAT is already removed from the displayed price. International Customers will incur local import taxes and duty charges.
VAT and Import Taxes FAQ
Low stock
-
Estimated Delivery:Jun 02 - Jun 06
Quloos QU02
New Isolation Technology
When both ends of the isolation are powered by the local pure power supply, we can hear the sound that is smoother, with cleaner background and more details. To effectively eliminate the ground loop noise introduced from the computer, the standard USB Bridge are equipped with complete ground isolation, such as INT204, Hydra Z+, Alpha, A.B.C, as well as some excellent USB Bridge in China. It’s obvious that a lot of efforts have been accumulated in this aspect.
The isolation design of QU02 is also unique. The CPU part of the USB Bridge, the audio output processing part and the clock part are completely isolated. The purpose is to isolate the interference caused by the computer, so that the sound is more pure and accurate. However, for almost all similar designs that adopted complete isolation, partial power supply of CPU of USB Bridge is by 5V power supply from USB inputted, so the sound will be greatly influenced by 5V power supply from USB inputted.
How about QU02? It directly abandoned 5V power supply from USB inputted and uses local pure power supply at both ends of isolation. Because both ends are designed with complete isolation, we made the isolation up to 3000V DC voltage before and after isolation, through Murata isolation power module. Through isolating the power supply, we realised the couplings, which not only realises the complete isolation, but also ensures that both ends are supplied with pure power supply with low internal resistance.
When both ends of the isolation are powered by the local pure power supply, we can hear the sound that is smoother, with cleaner background and more details. To effectively eliminate the ground loop noise introduced from the computer, the standard USB Bridge are equipped with complete ground isolation, such as INT204, Hydra Z+, Alpha, A.B.C, as well as some excellent USB Bridge in China. It’s obvious that a lot of efforts have been accumulated in this aspect.
The isolation design of QU02 is also unique. The CPU part of the USB Bridge, the audio output processing part and the clock part are completely isolated. The purpose is to isolate the interference caused by the computer, so that the sound is more pure and accurate. However, for almost all similar designs that adopted complete isolation, partial power supply of CPU of USB Bridge is by 5V power supply from USB inputted, so the sound will be greatly influenced by 5V power supply from USB inputted.
How about QU02? It directly abandoned 5V power supply from USB inputted and uses local pure power supply at both ends of isolation. Because both ends are designed with complete isolation, we made the isolation up to 3000V DC voltage before and after isolation, through Murata isolation power module. Through isolating the power supply, we realised the couplings, which not only realises the complete isolation, but also ensures that both ends are supplied with pure power supply with low internal resistance.
Box Contents:
- QU02
- 12V 2A DC switch mode power supply
- USB type A to B data cable
Technical Specifications
Dimensions
H 45mm, W 197mm, D 197mm
Clock oscillators
2x Accusilicon AS338
Clock jitter and 10Hz phase noise
38fs, -109.5dBc/Hz
PCM support
Up to 768kHz
DSD support
Up to DSD512
Digital input
USB type B (with Galvanic isolation)

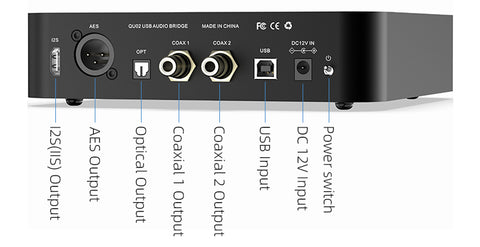

Digital outputs
2x Coaxial RCA, I2S HDMI, optical TosLink, AES/EBU XLR
Coaxial THD+Noise at 1kHz
<0.00001%
Coaxial SINAD at 1kHz
140dB
Output impedance and level
I2S, 100Ω LVDS. AES/EBU, 110Ω 3Vpp. Coaxial RCA, 75Ω 0.55Vpp.
Weight
1.3KG
Chassis material
Aluminium
