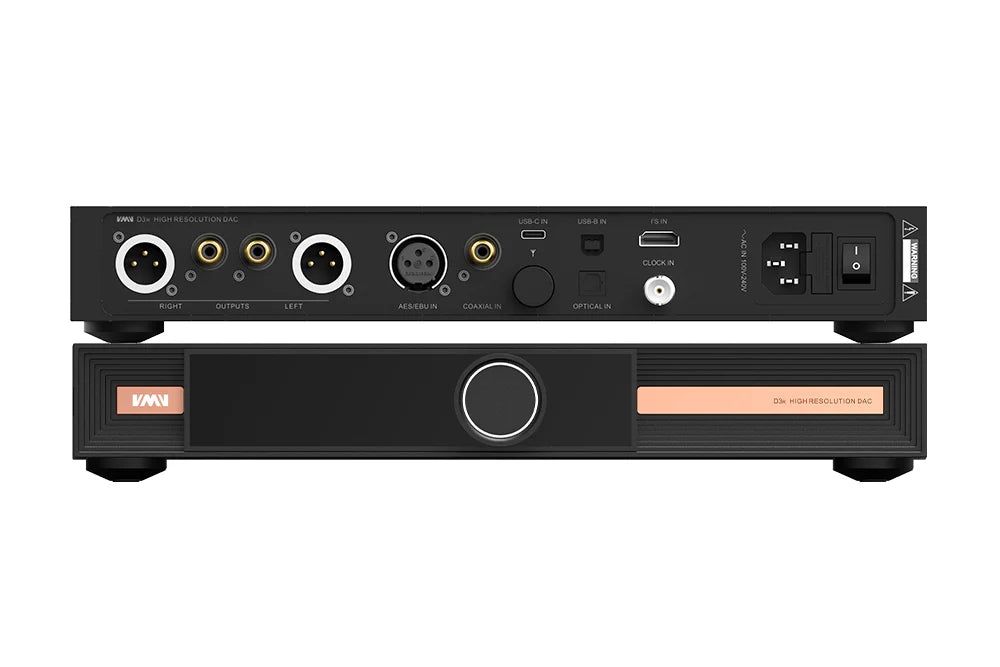

SMSL VMV D3R
Dual ROHM Flagship Digital to Analog Converter (DAC)
- ROHM BD34302EKV DAC chips with THD+N as low as 0.00013% (-117dB)
- Fully balanced analog volume control with true PRE-AMP function
- USB, optical, and coaxial all support MQA decoding and MQA-CD
- XMOS XU-316 supports PCM up to 768kHz and native DSD512
- CK-04 clock processing with ±3ppb 10MHz OCXO crystal oscillator
- Qualcomm Bluetooth chip supports LDAC, aptX HD, SBC, and AAC
- 3.49-inch tempered glass display with multi-language UI
- Linear power supply with adaptive voltage switching technology
Regular price
$1,559.00
Sale price
$1,559.00
Regular price
Unit price
Save
VAT and Duties Included for UK and Eligible EU Customers.
If you are outside the UK or EU, the price does not include any taxes. Local taxes and import duties will be extra. They will be raised by the local authorities and billed directly to the customer.
VAT and Import Taxes FAQ
SMSL VMV D3R
Technical specifications
Inputs
USB / Optical / Coaxial / I²S / Bluetooth / AES
Outputs
RCA / XLR
Line Output Level (XLR)
5.2 Vrms
Line Output Level (RCA)
2.5 Vrms
THD+N (XLR)
0.00013% (-117dB)
THD+N (RCA)
0.00017% (-115dB)
Dynamic Range (XLR)
123dB
Dynamic Range (RCA)
122dB
SNR (XLR)
123dB
SNR (RCA)
122dB
USB Transfer Mode
USB 2.0 Asynchronous
USB Compatibility
Windows 7/8/8.1/10/11 (Driver Required) | Mac OSX 10.6+, Android, iOS, Linux (Driverless)
MQA Decoder
USB / Optical / Coaxial / AES
USB/I²S PCM Sampling
44.1~768kHz (32bit)
USB/I²S DSD Sampling
2.8224~22.5792MHz (1bit)
USB DoP
2.8224~11.2896MHz (1bit)
Optical/Coaxial/AES PCM
44.1~192kHz (24bit)
Optical/Coaxial/AES DoP
2.8224MHz (1bit)
Bluetooth
Version 5.4 (SBC, AAC, aptX, aptX HD, LDAC)
Power Consumption
<30W
Dimensions (W x H x D)
320 × 51.5 × 280.9 mm
Weight
3.81kg / 8.4lbs
What's in the Box
D3R × 1
USB-C cable × 1
Power cable × 1
Remote control × 1
Bluetooth antenna × 1
User manual × 1
USB-C cable × 1
Power cable × 1
Remote control × 1
Bluetooth antenna × 1
User manual × 1
