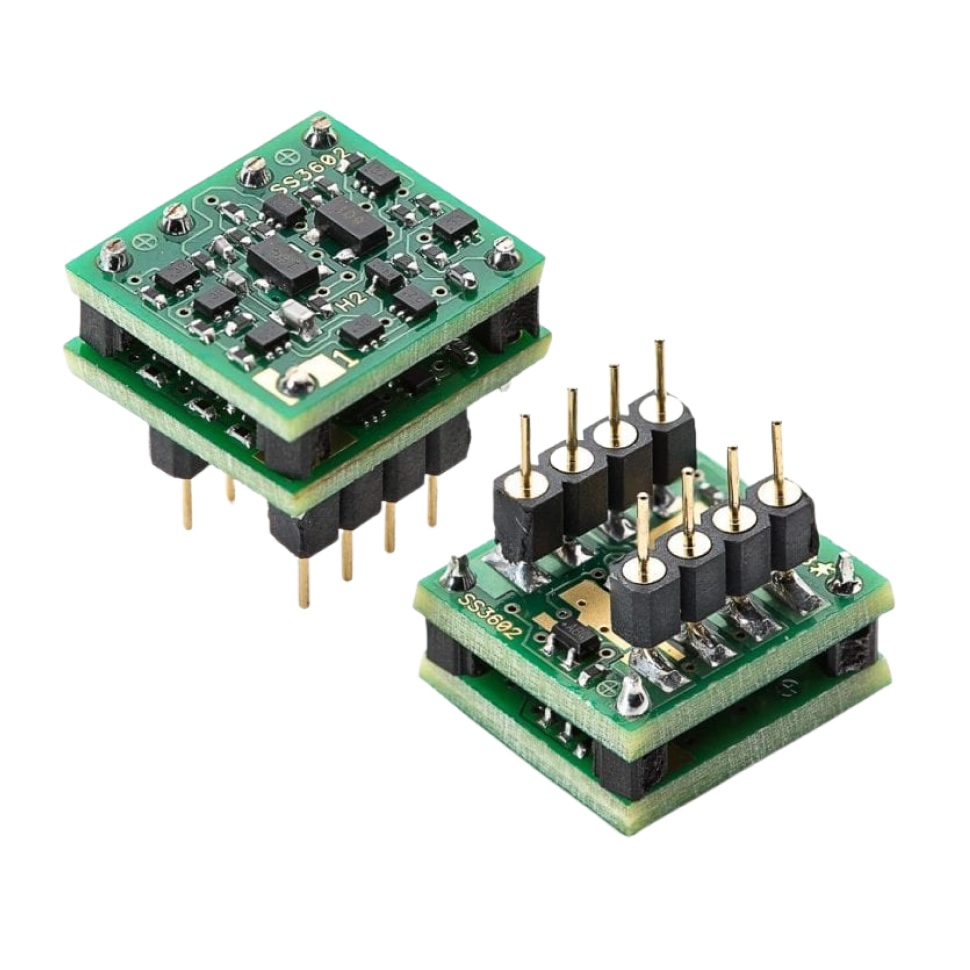

DUAL/SINGLE DISCRETE OP AMP

  • Best Op Amp For Amplifying Audio Signals
  • Available In Single Or Dual
  • DIP8 Compatible Package
  • Circular Machined Gold Plated Pins
  • Smallest Discrete Op Amp On The Market
  • 100% Class A Biasing
  • Two Pole Compensation
  • NPO Capacitors
  • 1% Metal Film Resistors
Low Stock
Low Stock
Regular price
$77.00
Regular price
Sale price
$77.00
Sale
SHIPS FROM THE UNITED KINGDOM

All our products ship from the UK. UK prices include local VAT. International orders will incur the destination's local taxes and duty charges.

SparkoS SS3602

Vendor: Sparkos Labs

SparkoS SS3602

$77.00

Vendor: Sparkos Labs

SparkoS SS3602

$77.00

IC op amps are dead. And we killed them.

Op amps are a key component for processing and amplifying audio signals. They can be found in virtually all audio gear in the form of tiny integrated circuits (IC's) like the one laying on its back in the picture. They also come with all of the pitfalls and shortcomings that IC op amps have, like limited power dissapation and crummy compensation capacitors. Discrete op amps do not have these limitations, and are a vastly superior op amp for amplifying audio signals than their IC counterparts are.

They can run much higher power, have much deeper class A bias, and deliver a much more realistic and detailed sound. Discrete op amps also permit the use of high quality compensation capacitors, and allow for two pole compensation schemes which are impossible to implement in IC designs. All of this translates into a more detailed and engaging listening experience with better imaging and soundstaging than IC op amps can deliver. In short, discrete designs are the best op amp for audio.

Op amp upgrading how-to video.

This video will explain the ins and outs of discrete op amps, what they are, how to install them, and why they are superior to IC op amps that your gear is currently using.

Taking your gear to the next level.

Discrete op amp installation in most gear is simple, requires no soldering, and is plug and play. Simply remove the IC op amps from their sockets, install the discretes in their place, and then prepare yourself for audio bliss. The explainer video above illustrates the process and explains why discrete op amps are the best op amp for amplifying audio signals. And of course we are here to answer all of your questions and walk you through the process together if you like. Contact us today, and we will gladly assist you. Just know that when you submit a contact form to Sparkos Labs, you will get a response from Sparko himself.

Features

  • Full Data Sheet Available.
  • 140 dB Open Loop Gain.
  • 10MHz Unity Gain Bandwidth.
  • 415nV RMS (2.9nV√HZ) Noise to 20KHZ.
  • +/- 18 Vcc Max.
  • 15mA Class A Output Current.
  • 65mA Max Output Current.
  • 14mA Supply Current.
  • < 300µV Typical Offset.

Compatible With

  • Discrete Op Amps in Aiyima.
  • Discrete Op Amps in Fosi.
  • Discrete op amps in FX Audio Tube 03.
  • Aune X8 with Discrete Op Amps.
  • Discrete Op Amps in Kinki Studios./li>
  • Topping D10 and D30 DAC with Discrete Op Amps.
  • Discrete Op Amps and Asus Sound Cards.
  • Discrete Op Amps and Gustard.
  • Maverick DAC and Discrete Op Amps.
  • Discrete Op Amps and Sound Blaster Sound Card.
  • Discrete Op Amps and Burson Fun.
  • Eastern Electric DAC and Discrete Op Amps.
